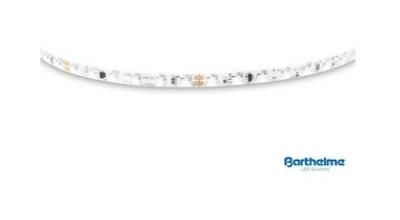

Barthelme 50300525 flex 10 side 24W 4500K 350lm/m L: 300cm LED light strip

Barthelme 50300525 flex 10 side 24W 4500K 350lm/m L: 300cm LED light strip

In stock

SKU: 390753

Price on request

€244.05

€0

Overview

90° beam angle to the LED strip, perfect for unusual lighting effects such as curved counters, convex and concave surfaces etc., long service life due to current constant, high copper content in the FPC and heat-resistant 3M double-sided adhesive tape, service life estimate L70 at Tc<65°C: >30,000h

Property	Value
Lamp power per meter:	8 W
With connection set:	no
Length of the individual sections:	62.5 mm
Number of lamps per meter:	96
Smallest bending radius:	20 mm
Width:	5.5 mm
Length:	3000 mm
Beam angle:	120 °
Design:	Band
With End piece:	no
Color temperature:	4500 K
Light source:	LED not replaceable
Protection class (IP):	IP00
Self-adhesive:	yes
Voltage type:	DC
Mounting type:	Surface-mounted/built-in
Luminous flux per meter:	336 lm
Lamp voltage:	24 V
Operating device:	LED operating device voltage-controlled
Energy efficiency class of the permanently installed Light source:	other
Protection class:	III
Max. System power:	24 W
Light color:	white
Color rendering index CRI:	70-79
Height/depth:	2.6 mm
With protective cover:	no
Type of wiring:	with through-wiring
Number of poles:	2
Conductor cross-section:	0.34 mm²
Connection type:	soldering

Characteristics

Energy efficiency class of the permanently installed light sourceOther

With end pieceNo

With connection setNo

HABFlex 10 side 24W 4500K 350lm/m L: 300cm

Manufacturer

HAN50300525

GTIN4021553042411

Connection typeSoldering

Number of lamps per meter96

Type of wiringWith through wiring

VersionTape

Beam angle120°

Operating deviceLED control gear voltage controlled

Width5.5 mm

Color temperature4500K

Color rendering index CRI70-79

Height/Depth2.6 mm

Smallest bending radius20 mm

Lamp power per meter8W

Lamp voltage24V

Conductor cross-section0.34 mm²

LampsLED not replaceable

Light colorWhite

Luminous flux per meter336lm

Length3000 mm

Length of each section62.5 mm

Max. system performance24W

With protective coverNo

Mounting typeConstruction/Installation

Number of poles2

IP protection)IP00

Protection classIII

Self-adhesiveYes

Voltage typeDC
