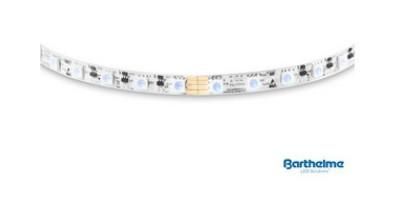

Barthelme 50324631 LEDlight flex 15 8P RGB 66W L: 396cm LED light strip LB17

In stock
SKU: 392287
€422.86
Into a basketIn the basketGo

Overview

Effective basic lightingConnector for solder-free connectionOnly 8mm wide for combination with the special connectors for tool-free connection of the strips without soldering including strain relief, larger LED chip (5630), with flat height and integrated heat dissipation, enables efficient heat management, long service life due to current constant, high copper content in the FPC and heat-conducting 3M double-sided adhesive tape, ESD strength: ESD-safe up to 5kV according to JESD22-A114-F, reverse polarity protection, binned on the roll according to 2 Step MacAdam, service life estimated L70 at Tc66,000h

PropertyValue
Lamp power per meter:16 W
With connection set:no
Length of the individual sections:90 mm
Number of lamps per meter:66
Smallest bending radius:20 mm
Width:8 mm
Length:3960 mm
Beam angle:120 °
Design:Band
With End piece:no
Light source:LED not replaceable
Protection class (IP):IP00
Self-adhesive:yes
Voltage type:DC
Mounting type:surface-mounted/built-in
Luminous flux per meter:740 lm
Lamp voltage:24 V
Operating device:LED operating device voltage-controlled
Energy efficiency class of the permanently installed light source:other
Protection class:III
Max. system power:66 W
Light color:RGB
Height/depth:2.5 mm
With protective cover:no
Type of wiring:with through-wiring
Number of poles:4
Conductor cross-section:0.34 mm²
Connection type:soldering

Characteristics

Energy efficiency class of the permanently installed light sourceOther
With end pieceNo
With connection setNo
HABLEDlight flex 15 8P RGB 66W L: 396cm
ManufacturerBarthelme
HAN50324631
GTIN4021553035383
Connection typeSoldering
Number of lamps per meter66
Type of wiringWith through wiring
VersionTape
Beam angle120°
Operating deviceLED control gear voltage controlled
Width8 mm
Height/Depth2.5 mm
Smallest bending radius20 mm
Lamp power per meter16W
Lamp voltage24V
Conductor cross-section0.34 mm²
LampsLED not replaceable
Light colorRGB
Luminous flux per meter740lm
Length3960 mm
Length of each section90 mm
Max. system performance66W
With protective coverNo
Mounting typeConstruction/Installation
Number of poles4
IP protection)IP00
Protection classIII
Self-adhesiveYes
Voltage typeDC
