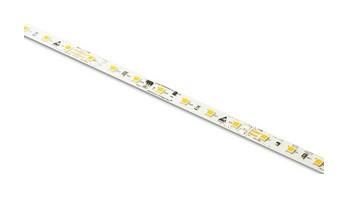

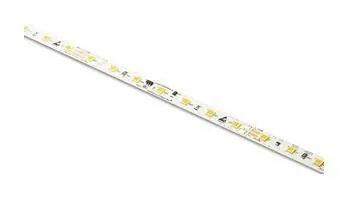

Barthelme 50409928 Pro 24V 44.5W/m 2700K 3974lm/m L: 216cm LED light strip

In stock
SKU: 391644
€55.99
Into a basketIn the basketGo

Overview

Very high efficiency, only one bin according to 3-Step MacAdam, tool-free connection with connector possible, mid-power LED chips of the latest generation ensure optimal performance and heat dissipation, with reverse polarity protection diode, long service life due to current constant with temperature control, high copper content in the FPC and heat-conducting 3M double-sided adhesive tape, service life estimate L70 at Tc <, 80 °C: >, 60,300h

PropertyValue
Lamp wattage per meter:32 W
With connection set:no
Length of the individual sections:90 mm
Number of lamps per meter:78
Smallest bending radius:30 mm
Width:8 mm
Length:2160 mm
Beam angle:120 °
Design:Band
With End piece:no
Color temperature:2700 K
Light source:LED not replaceable
Protection class (IP):IP00
Self-adhesive:yes
Voltage type:DC
Mounting type:Surface-mounted/built-in
Luminous flux per meter:3970 lm
Lamp voltage:24 V
Operating device:LED operating device voltage-controlled
Energy efficiency class of the permanently installed Light source:A++, A+, A (LED)
Rated service life L90/B10 at 25 °C:60000 h
Protection class:III
Max. System power:69 W
Light color:white
Color rendering index CRI:80-89
Height/depth:1.4 mm
With protective cover:no
Type of wiring:with through-wiring
Number of poles:2
Conductor cross-section:0.34 mm²
Connection type:soldering

Characteristics

Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)
With end pieceNo
With connection setNo
Rated service life L90/B10 at 25 °C60000 h
HABPro 24V 44,5W/m 2700K 3974lm/m L: 216cm
ManufacturerBarthelme
HAN50409928
GTIN4021553074382
Connection typeSoldering
Number of lamps per meter78
Type of wiringWith through wiring
VersionTape
Beam angle120°
Operating deviceLED control gear voltage controlled
Width8 mm
Color temperature2700K
Color rendering index CRI80-89
Height/Depth1.4 mm
Smallest bending radius30 mm
Lamp power per meter32W
Lamp voltage24V
Conductor cross-section0.34 mm²
LampsLED not replaceable
Light colorWhite
Luminous flux per meter3970lm
Length2160 mm
Length of each section90 mm
Max. system performance69 W
With protective coverNo
Mounting typeConstruction/Installation
Number of poles2
IP protection)IP00
Protection classIII
Self-adhesiveYes
Voltage typeDC
Barthelme 50409928 Pro 24V 44.5W/m 2700K 3974lm/m L: 216cm LED light strip
Barthelme 50409928 Pro 24V 44.5W/m 2700K 3974lm/m L: 216cm LED light strip
€55.99
