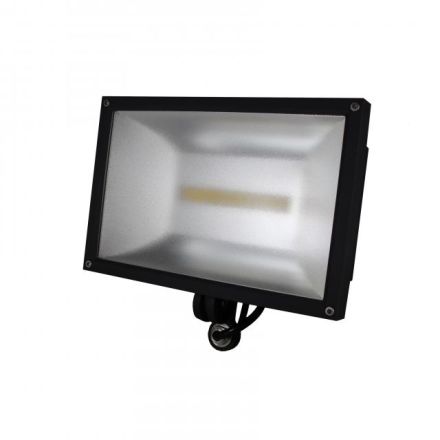

Bega 77427K4 floodlight for indoor and outdoor use graphite 4000 K (replacement glass: 14001376)

Bega 77427K4 floodlight for indoor and outdoor use graphite 4000 K (replacement glass: 14001376)

In stock

SKU: 173439

Price on request

€839.59

€0

Overview

BEGA area spotlight 77427K4 with connection thread G½ according to DIN ISO 288. Wide beam light distribution. LED, 73 W luminaire connected load, luminaire luminous flux 7024 lm, half beam angle 90/96°, color temperature 4000 K. Color rendering index (CRI) > 90. With replaceable BEGA LED module with overtemperature protection and a service life of at least 50,000 operating hours. 20-year guarantee on the LED module and wearing parts. With LED power supply, DALI controllable, 220-240 V, 0/50-60 Hz. Protection class IP 65. Luminaire made of cast aluminum, aluminum and stainless steel, color graphite. Safety glass with optical structure. Reflector made of anodized pure aluminum. Rotation range 350°. Swivel range -35°/+90°. With connecting cable X05BQ-F 5 G 1 qmm, length 1 m. Dimensions: 290 x 270 x 125 mm.

Property	Value
Max. System power:	71 W
Rated luminous flux according to IEC 62722-2-1:	8386 lm
Housing color:	anthracite
Housing material:	other
Protection class (IP):	IP65
Socket:	without
Light source:	LED replaceable
Protection class:	I
With light source:	yes
With control gear:	yes
Length:	125 mm
Width:	290 mm
Height/depth:	270 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	64.2 W
Color rendering index CRI:	90-100
Light distribution:	symmetrical
Operating device:	not required
Impact resistance:	IK07
Luminous flux:	10155 lm
Cover material:	structured glass
Voltage type:	AC/DC
Light color:	white
Adjustability:	rotatable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	yes
Suitable for truss mounting:	no
With light sensor:	no
Suitable for cable system:	no
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
LineSwitch dimming:	no
Manufacturer-specific dimming:	no
Mains voltage modulation dimming:	no
Trailing edge dimming:	no
Phase control dimming:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine Wave Reduction dimming:	no
Touch and Dim dimming:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated ambient temperature according to IEC62722-2-1:	25 °C

Characteristics

Manufacturer

HAN77427

GTIN4044017245760

Rated luminous flux according to IEC 62722-2-18386lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceNot required

Width290 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI90-100

VersionWithout

Suitable for clamp mountingNo

Suitable for lamp power64.2W

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingYes

Suitable for rope systemNo

Suitable for truss mountingNo

Housing colorAnthracite

Height/Depth270 mm

LampsLED replaceable

Light colorWhite

Luminous flux10155lm

Light distributionSymmetrical

Length125 mm

Max. system performance71 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Brushed surfaceNo

Impact resistanceIK07

IP protection)IP65

Protection classI

Voltage typeAC/DC

AdjustabilityRotatable

Cover materialGlass structured

Housing materialOther
