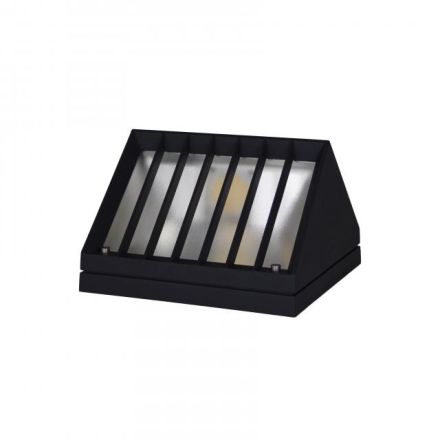

Bega 33238K3 wall light for indoor and outdoor use graphite 3000 K ( replacement glass: 14000926 )

Bega 33238K3 wall light for indoor and outdoor use graphite 3000 K ( replacement glass: 14000926 )

In stock

SKU: 154129

Price on request

€450.56

€0

Overview

BEGA wall light 33238K3. Asymmetrical light distribution. LED, 20 W luminaire connected load, luminaire luminous flux 1785 lm, color temperature 3000 K. Color rendering index (CRI) > 80. With replaceable BEGA LED module with overtemperature protection and a service life of at least 50,000 operating hours. 20-year guarantee on the LED module and wearing parts. With BEGA Ultimate Driver® LED power supply, DALI controllable, 220-240 V, 0/50-60 Hz. Protection class IP 65. Luminaire made of cast aluminum, aluminum and stainless steel, BEGA Unidure® coating technology, color graphite. Safety glass with optical structure. Reflector made of anodized pure aluminum. Two cable entries for through-wiring of the mains connection cable up to Ø 10.5 mm, max. 5 x 1.5 mm². Dimensions: 200 x 200 x 135 mm.

Property	Value
Max. System power:	20 W
Rated luminous flux according to IEC 62722-2-1:	1785 lm
Length:	135 mm
Width:	200 mm
Height/depth:	200 mm
Protection type (IP):	IP65
Protection class:	I
Nominal voltage:	220 to 240 V
Housing color:	anthracite
Material of Housing:	other
Color temperature:	3000 K
Impact resistance:	IK09
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Suitable for wall mounting:	yes
Voltage type:	AC/DC
With light source:	yes
Light source:	LED replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
With control gear:	yes
Cover material:	without cover
Light distribution:	asymmetrical
Control gear:	not required
Suitable for recessed mounting:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Suitable for lamp power:	17.6 W

Characteristics

Manufacturer

HAN33238

GTIN4044017184038

Rated luminous flux according to IEC 62722-2-11785 lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceNot required

Width200 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for lamp power17.6W

Suitable for light strip configurationNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorAnthracite

Height/Depth200 mm

LampsLED replaceable

Light distributionAsymmetrical

Length135 mm

Max. system performance20W

With operating deviceYes

With light sourceYes

With air slotsNo

Nominal voltage220 to 240 V

Impact resistanceIK09

IP protection)IP65

Protection classI

Voltage typeAC/DC

Cover materialWithout cover

Housing materialOther
