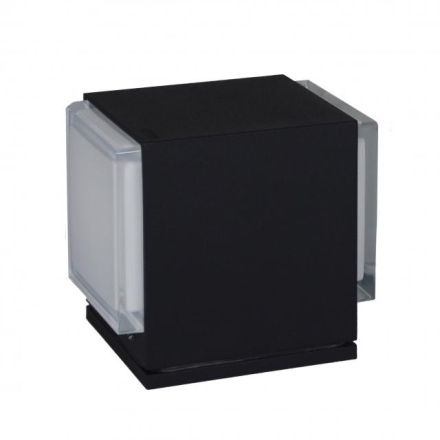

Bega 33505K3 wall light for indoor and outdoor use graphite 3000 K ( replacement glass: 1100296211 )

Bega 33505K3 wall light for indoor and outdoor use graphite 3000 K ( replacement glass: 1100296211 )

In stock

SKU: 154171

Price on request

€334.03

€0

Overview

BEGA wall light 33505K3. Directed light. Two-sided light emission. LED, 6.9 W luminaire connected load, luminaire luminous flux 236 lm, color temperature 3000 K. Color rendering index (CRI) > 90. With replaceable BEGA LED module with overtemperature protection and a service life of at least 50,000 operating hours. 20-year guarantee on the LED module and wearing parts. With BEGA Ultimate Driver® LED power supply 220-240 V, 0/50-60 Hz. Protection class IP 64. Light made of cast aluminum, aluminum and stainless steel, BEGA Unidure® coating technology, color graphite. Crystal glass inside white. One cable entry for power cable up to Ø 10.5 mm, max. 3 x 1.5 mm². Dimensions: 90 x 120 x 110 mm.

Property	Value
Max. System power:	6.9 W
Rated luminous flux according to IEC 62722-2-1:	364 lm
Length:	110 mm
Width:	90 mm
Height/depth:	120 mm
Protection rating (IP):	IP64
Protection class:	I
Nominal voltage:	220 to 240 V
Housing color:	anthracite
Housing material:	other
Color temperature:	3000 K
Impact resistance:	IK07
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Suitable for wall mounting:	yes
Voltage type:	AC/DC
With light source:	yes
Light source:	LED replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
With Operating device:	yes
Cover material:	transparent glass
Without dimming function:	yes
Light distribution:	symmetrical
Operating device:	not required
Suitable for recessed mounting:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge phase control:	no
Dimming leading edge phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Suitable for lamp power:	5.8 W

Characteristics

Manufacturer

HAN33505

GTIN4044017189071

Rated luminous flux according to IEC 62722-2-1364lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceNot required

Width90 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for lamp power5.8W

Suitable for light strip configurationNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorAnthracite

Height/Depth120 mm

LampsLED replaceable

Light distributionSymmetrical

Length110 mm

Max. system performance6.9W

With operating deviceYes

With light sourceYes

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Impact resistanceIK07

IP protection)IP64

Protection classI

Voltage typeAC/DC

Cover materialGlass transparent

Housing materialOther
