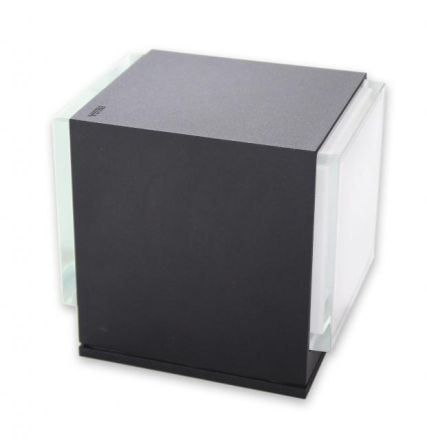

Bega 33549K3 wall light for indoor and outdoor use graphite 3000 K ( replacement glass: 1100311911 )

Bega 33549K3 wall light for indoor and outdoor use graphite 3000 K ( replacement glass: 1100311911 )

In stock

SKU: 168005

Price on request

€386.20

€0

Overview

BEGA wall light 33549K3. Directed light. Two-sided light emission. LED, 19.8 W luminaire connected load, luminaire luminous flux 701 lm, color temperature 3000 K. Color rendering index (CRI) > 80. With replaceable BEGA LED module with overtemperature protection and a service life of at least 50,000 operating hours. 20-year guarantee on the LED module and wearing parts. With LED power supply, DALI controllable, 220-240 V, 0/50-60 Hz. Protection class IP 64. Light made of cast aluminum, aluminum and stainless steel, color graphite. Crystal glass inside white. Two cable entries for through-wiring the power cable up to Ø 10.5 mm, max. 5 x 1.5 mm². Dimensions: 120 x 155 x 140 mm.

Property	Value
Max. System power:	19 W
Rated luminous flux according to IEC 62722-2-1:	939 lm
Length:	140 mm
Width:	120 mm
Height/depth:	155 mm
Protection rating (IP):	IP64
Protection class:	I
Nominal voltage:	220 to 240 V
Housing color:	anthracite
Housing material:	other
Color temperature:	3000 K
Impact resistance:	IK07
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Suitable for wall mounting:	yes
Voltage type:	AC/DC
With light source:	yes
Light source:	LED replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
With Operating device:	yes
Cover material:	transparent glass
Light distribution:	symmetrical
Operating device:	not required
Suitable for recessed mounting:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
DMX dimming:	no
DSI dimming:	no
With Air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine wave reduction dimming:	no
Touch and dim dimming:	no
Zigbee dimming:	no
Push button dimming:	no
Suitable for lamp power:	16 W

Characteristics

Manufacturer

HAN33549

GTIN4044017190459

Rated luminous flux according to IEC 62722-2-1939lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceNot required

Width120 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for lamp power16W

Suitable for light strip configurationNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorAnthracite

Height/Depth155 mm

LampsLED replaceable

Light distributionSymmetrical

Length140 mm

Max. system performance19 W

With operating deviceYes

With light sourceYes

With air slotsNo

Nominal voltage220 to 240 V

Impact resistanceIK07

IP protection)IP64

Protection classI

Voltage typeAC/DC

Cover materialGlass transparent

Housing materialOther
