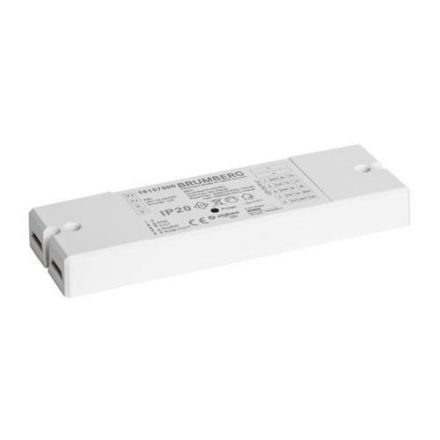

Brumberg 18157000 18157 Dim ZigBee LED dimmer

In stock

SKU: 814419

Price on request

€72.80

€0

Overview

LED dimmer 12-24 V DC, Zigbee dimmable. ZigBee LED dimmer for constant voltage operation (12-24 V DC) over 5 channels. The device can be set to different operating modes. 5 x single color (not independent), 2 x TunableWhite (not independent), 1 x RGBW, 1 x RGB + TunableWhite (ww+w) An external power supply is required for operation. The input and output terminals are suitable for cables with a cross-section of up to 1.5 mm². Input voltage: 12 - 24 V DC, output voltage: depends on the input voltage (12 - 24 V DC), output current: 4 A per channel, output power: 48 W (12 V DC) - 96 W (24 V DC) per channel, ambient temperature (ta): -20 °C to +50 °C, measuring point (tc): max. +75 °C, incl. strain relief, material: plastic, dimensions: L 145 x W 46.5 x H 16 mm, frequency: 2.4 GHz, protocol: ZigBee 3.0 Ps = < 100 mW material: plastic, protection type: according to DIN EN 60529: IP20, protection class: (EN 61140) III, voltage: 12V 24V, power: 240W, type of dimming: ZigBee.

Property	Value
Output power:	48 to 240 W
Protection class (IP):	IP20
Output voltage:	12 to 24 V
Protection class:	III
Length:	145 mm
Width:	46.5 mm
Height:	16 mm
Design:	dynamic
Housing:	plastic housing
Suitable for Outdoor use:	no
Suitable for constant voltage:	yes
Suitable for constant current:	no
Suitable for direct voltage (primary side):	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DSI:	no
Dimming DMX:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
