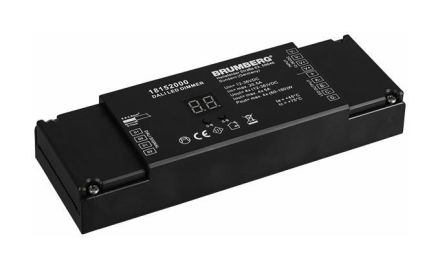

REG LED dimmer 12-24 V DC, dimmable. LED dimmer series for constant voltage operation (12-24 V DC) over 4 channels (single or multi-colored). The wiring is screwless via plug-in terminals. Cable cross-section: 0.5-2.5 mm². An external power supply is required for operation, output signal (dimming): PWM (pulse width modulation), with reverse polarity and overtemperature protection. Max. output current: 10 A (4 x 2.5 A, 3 x 3.33 A, 2 x 5 A, 1 x 5 A) Max. output power 12 V: 120 W (4 x 30 W, 3 x 40 W, 2 x 60 W, 1 x 60 W) Max. output power 24 V: 240 W (4 x 60 W, 3 x 80 W, 2 x 120 W, 1 x 120 W) 18165000: 2 x 2-channel device with one address (DALI DT8) for TunableWhite luminaires. Two channels (outputs) are combined (2 x ww, 2 x cw max. 2 x 5 A or 4 x 2.5 A). The device can be operated, for example, with a Power DALI touch control device TW (1713 DSTE), or a KNX DALI gateway TW (2099 REGHE) from Jung, or with a DALI potentiometer Tunable WH (2030 00), or a KNX DALI gateway Tunable WH Plus (2108 00) from GIRA. The connected lights can be switched, the color temperature can be changed and dimmed. (L 54 x W 110 x H 66 mm, 3 TE). Material: plastic, protection type: according to DIN EN 60529: IP20, protection class: (EN 61140) III, voltage: 12V 24V, power: 240W, type of dimming: DALI.
| Property | Value |
| Output power: | 24 to 240 W |
| Protection class (IP): | IP20 |
| Output voltage: | 12 to 24 V |
| Protection class: | III |
| Length: | 54 mm |
| Width: | 110 mm |
| Height: | 66 mm |
| Design: | dynamic |
| Housing: | plastic housing |
| Suitable for Outdoor use: | no |
| Suitable for constant voltage: | yes |
| Suitable for constant current: | no |
| Suitable for direct voltage (primary side): | yes |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | yes |
| Dimming DSI: | no |
| Dimming DMX: | no |
| Dimming potentiometer (integrated in device): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
