Brumberg 12042173 230V 9+1.5W 3000K white LED ceiling light

Brumberg 12042173 230V 9+1.5W 3000K white LED ceiling light

In stock

SKU: 430712

Price on request

€179.33

€0

Overview

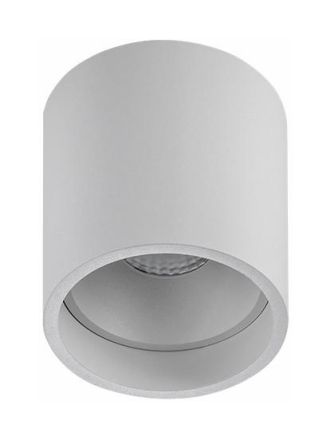

LED surface-mounted downlight TUBIC, white. Compact design for harmonious implementation in harmonious, architectural room concepts. LED ceiling surface-mounted downlight with 9.5 W / 900 lm direct and 1.5 W / 150 lm indirect light component. . Socket: without, mounting type: surface-mounted, mounting location: ceiling mounting, material: aluminum / plastic, protection type: according to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 11 W, number of lamps / sockets: 1.0 pcs, luminous flux: 1050.0 lm, light color: 3000 K, light color: white, beam angle: 60.0 °, adjustability: not adjustable, with operating device: yes, type of dimming: switchable, energy efficiency class: A++ to A,

Property	Value
Max. System power:	13 W
Rated luminous flux according to IEC 62722-2-1:	1160 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	100 mm
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With control gear:	yes
Suitable for recessed mounting:	no
Height/depth:	111 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	230 V
Suitable for lamp power:	13 W
Beam angle:	wide beam 41-80°
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Reflector:	high-gloss
Suitable for number of lamps:	1
Luminous flux:	1160 lm
Cover material:	transparent plastic
Voltage type:	AC
Light color:	white
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendant suspension:	no
Suitable for podium/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Brushed surface:	no
Dimming depends on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming Phase control:	no
Programmable dimming:	no
RF dimming:	no
Sine Wave Reduction dimming:	no
Touch and Dim dimming:	no
Zigbee dimming:	no
Push-button dimming:	no
Without dimming function:	yes
Light emission:	direct
Luminous efficacy:	89.23 lm/W
Suitable for computer workstations according to EN 12464-1:	no

Characteristics

Manufacturer

HAN12042173

GTIN4251433915317

Beam angleWide beam 41-80°

Outer diameter100 mm

Rated luminous flux according to IEC 62722-2-11160lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI90-100

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power13 W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for truss mountingNo

Housing colorWhite

Height/Depth111 mm

Luminaire luminous efficacy89.23lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1160lm

Light distributionSymmetrical

Max. system performance13 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

Brushed surfaceNo

Without dimming functionYes

ReflectorHigh gloss

IP protection)IP20

Protection classI

Voltage typeAC

AdjustabilityNot adjustable

Cover materialPlastic transparent

Housing materialAluminum
