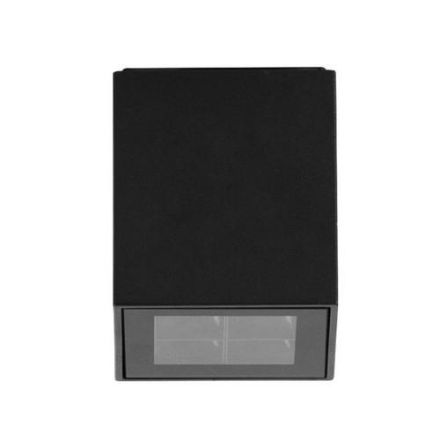

Brumberg 60115103 60115 ABL 8.4W 230V IP65 LED ceiling light

Brumberg 60115103 60115 ABL 8.4W 230V IP65 LED ceiling light

In stock

SKU: 814365

Price on request

€157.94

€0

Overview

LED ceiling surface-mounted light, IP65, structural graphite, square. Compact design for harmonious implementation in harmonious, architectural room concepts. Mounting type: surface-mounted, Mounting location: ceiling mounting, Material: aluminum / glass, Protection class on the room side: according to DIN EN 60529: IP65, Protection class: (EN 61140) I, Voltage: 230V AC 50Hz, Power: 10W, Number of lamps / sockets: 1.0 pcs, Luminous flux: 635 lm, Light color: white, Beam angle: 34°, Adjustability: not adjustable, With control gear: Yes, Dimmable: No, Type of dimming: switchable.

Property	Value
Max. System power:	10 W
Rated luminous flux according to IEC 62722-2-1:	635 lm
Housing color:	gray
Housing material:	aluminum
Protection class (IP):	IP65
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With control gear:	yes
Suitable for recessed mounting:	no
Length:	70 mm
Width:	70 mm
Height/depth:	80 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	230 V
Suitable for lamp power:	10 W
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Suitable for number of lamps:	1
Luminous flux:	635 lm
Cover material:	transparent glass
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendant suspension:	no
Suitable for podium/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Brushed surface:	no
Dimming depends on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming Phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light emission:	direct
Type of wiring:	Termination
Luminaire luminous efficacy:	63.5 lm/W
Suitable for computer workstations according to EN 12464-1:	no

Characteristics

HAB60115 ABL 8,4W 230V IP65

Manufacturer

HAN60115103

GTIN4251433925552

Type of wiringDiploma

Rated luminous flux according to IEC 62722-2-1635lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width70 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power10W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorGray

Height/Depth80 mm

Luminaire luminous efficacy63.5lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux635lm

Light distributionSymmetrical

Length70 mm

Max. system performance10W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

Brushed surfaceNo

Without dimming functionYes

IP protection)IP65

Protection classI

Voltage typeAC

AdjustabilityNot adjustable

Cover materialGlass transparent

Housing materialAluminum
