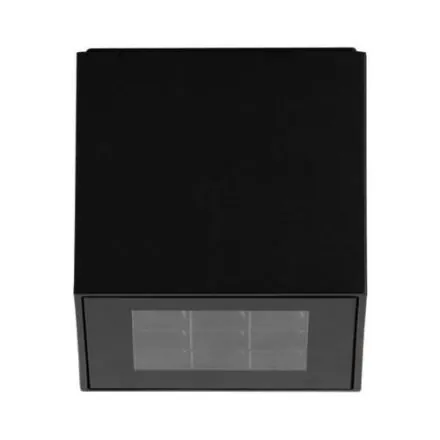

Brumberg 60116103 60116 ABL 22W 230V IP65 LED ceiling light

Brumberg 60116103 60116 ABL 22W 230V IP65 LED ceiling light

In stock

SKU: 814368

Price on request

€256.77

€0

Overview

LED ceiling surface-mounted light BLOKK, IP65, structured graphite, square. Compact design for harmonious implementation in harmonious, architectural room concepts. . Mounting type: surface-mounted, mounting location: ceiling mounting, material: aluminum / glass, protection type: according to DIN EN 60529: IP65, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 22W, number of lamps / sockets: 1.0 pcs, luminous flux: 2,030lm, beam angle: 36°.

Property	Value
Max. System power:	21 W
Rated luminous flux according to IEC 62722-2-1:	1600 lm
Housing color:	gray
Housing material:	aluminum
Protection class (IP):	IP65
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
Suitable for recessed mounting:	no
Length:	110 mm
Width:	110 mm
Height/Depth:	100 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	230 V
Suitable for lamp power:	21 W
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for number of bulbs:	9
Luminous flux:	1600 lm
Cover material:	transparent glass
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for truss mounting:	no
Suitable for Surface mounting:	yes
Suitable for cable system:	no
Brushed surface:	no
Dimming dependent on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Type of wiring:	suitable for through wiring
Luminous efficacy:	76.19 lm/W

Characteristics

HAB60116 ABL 22W 230V IP65

Manufacturer

HAN60116103

GTIN4251433925736

Type of wiringSuitable for through wiring

Rated luminous flux according to IEC 62722-2-11600lm

Width110 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power21 W

Suitable for number of lamps9

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorGray

Height/Depth100 mm

Luminaire luminous efficacy76.19lm/W

LampsLED not replaceable

Light colorWhite

Luminous flux1600lm

Length110 mm

Max. system performance21 W

With motion detectorNo

With light sourceYes

Nominal voltage230V

Brushed surfaceNo

Without dimming functionYes

IP protection)IP65

Protection classI

Voltage typeAC

AdjustabilityNot adjustable

Cover materialGlass transparent

Housing materialAluminum

Brumberg 60116103 60116 ABL 22W 230V IP65 LED ceiling light

Price on request

€256.77

€0
