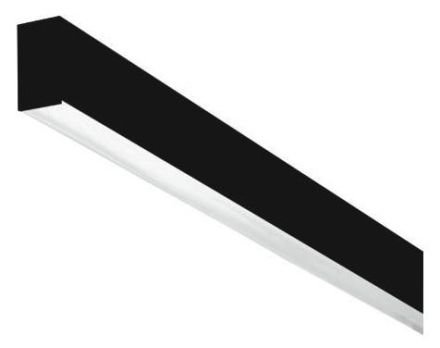

Brumberg 77114083 Profile 3000K LED ceiling light

In stock

SKU: 872298

Price on request

€491.17

€0

Overview

LED surface-mounted profile, black, rectangular. Compact design for harmonious implementation in harmonious, architectural room concepts. Installation type: surface-mounted, installation location: ceiling mounting, material: aluminum / acrylic, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 35.8W, luminous flux: 2,860 lm, color temperature: 3,000 K, light color: white, beam angle: 80°, adjustability: not adjustable, with control gear: yes, type of dimming: switchable.

Property	Value
Max. System power:	35.8 W
Rated luminous flux according to IEC 62722-2-1:	2860 lm
Length:	2264 mm
Width:	40 mm
Height/depth:	75 mm
Protection class (IP):	IP20
Protection class:	I
Nominal voltage:	230 V
Housing color:	black
Housing material:	aluminum
Color temperature:	3000 K
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
Beam angle:	wide beam 41-80°
With light source:	yes
Light source:	LED not replaceable
With control gear:	yes
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device voltage controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for light strip configuration:	no
Suitable for Pendulum suspension:	no
Suitable for surface mounting:	yes
DMX dimming:	no
DSI dimming:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in the device):	no
0-10 V dimming:	no
GPRS dimming:	no
1-10 V dimming:	no
Manufacturer-specific dimming:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with Push button:	no
Dimming depending on the operating device:	no
Rated service life L70/B50 at 25 °C:	60000 h
Suitable for lamp power:	35.8 W
Luminaire luminous efficacy:	79.89 lm/W

Characteristics

HAB77114083 Profile 3000K

Manufacturer

HAN77114083

GTIN4251433934349

Beam angleWide beam 41-80°

Rated lifetime L70/B50 at 25 °C60000 hours

Rated luminous flux according to IEC 62722-2-12860lm

Operating deviceLED control gear voltage controlled

Suitable for computer workstations according to EN 12464-1Yes

Width40 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI90-100

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power35.8W

Suitable for light strip configurationNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorBlack

Height/Depth75 mm

Luminaire luminous efficacy79.89lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length2264 mm

Max. system performance35.8W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

Without dimming functionYes

IP protection)IP20

Protection classI

Voltage typeAC

Housing materialAluminum
