Brumberg 12027153 LED furniture recessed. 12V DC, 2W, white

Brumberg 12027153 LED furniture recessed. 12V DC, 2W, white

In stock

SKU: 179382

Price on request

€50.20

€0

Overview

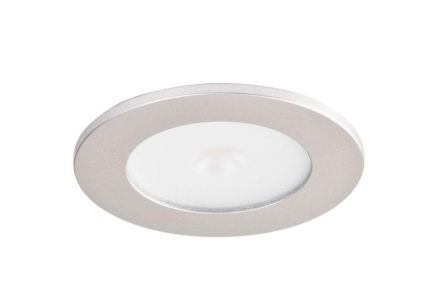

LED recessed downlight, matt aluminum, round. Designed in a compact shape for tool-free quick installation for ceiling installation. Luminaire optimized for installation in furniture and wood materials. Installation type: recessed installation, installation location: ceiling installation, material: cast / plastic, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) III, voltage: 12V, power: 2W, number of lamps / sockets: 1.0 pcs, luminous flux: 175 lm, color temperature: 3,200 K, light color: white, beam angle: 45°, adjustability: not adjustable, with control gear: no, type of dimming: depends on the control gear.

Property	Value
Max. System power:	2 W
Rated luminous flux according to IEC 62722-2-1:	175 lm
Housing color:	Aluminium
Housing material:	Plastic
Protection class (IP):	IP20
Outer diameter:	70 mm
Light source:	LED not replaceable
Protection class:	III
With light source:	yes
Installation height/depth:	14 mm
With Operating device:	no
Suitable for recessed mounting:	yes
Height/depth:	3 mm
With motion detector:	no
Color temperature:	3200 K
Nominal voltage:	12 V
Suitable for lamp power:	2 W
Beam angle:	medium beam 21-40°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device voltage controlled
Reflector:	without
Suitable for number of lamps:	1
Luminous flux:	175 lm
Cover material:	opal plastic
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	DC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
Dimming depends on Operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	no
Light emission:	direct
Luminous efficacy:	87.5 lm/W

Characteristics

HAB12027153

Manufacturer

HAN12027153

GTIN4250047766414

Covering the luminaire with thermal insulation material possibleNo

Beam angleMedium beam 21-40°

Outer diameter70 mm

Rated luminous flux according to IEC 62722-2-1175lm

Operating deviceLED control gear voltage controlled

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth14 mm

Color temperature3200K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power2W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorAluminum

Height/Depth3 mm

Luminaire luminous efficacy87.5lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux175lm

Light distributionSymmetrical

Max. system performance2W

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage12V

Brushed surfaceNo

Without dimming functionNo

ReflectorWithout

IP protection)IP20

Protection classIII

Voltage typeDC

AdjustabilityNot adjustable

Cover materialPlastic opal

Housing materialPlastic
