Brumberg 12053173 LED light point, round 3W, IP65, 700mA, ww

Brumberg 12053173 LED light point, round 3W, IP65, 700mA, ww

In stock

SKU: 179396

Price on request

€64.16

€0

Overview

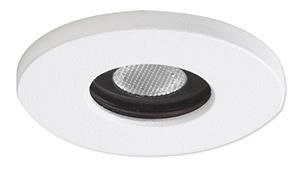

LED light point, round 3W, IP65, 700mA, ww LED light point, round, equipped with 1x high-performance LED, surface structured white, for use in the area of orientation or accent lighting, installation in hollow spaces with spring fastening, with BRUMBERG plug connection 700 mA (Plug & Play), LED light source emitting downwards, including optical lens, beam angle approx. 45°. Luminaire not suitable for covering with thermal insulation material. Energy efficiency class A++ to A. This luminaire contains built-in LED lamps. These lamps cannot be replaced in the luminaire.

Property	Value
Max. System power:	3 W
Rated luminous flux according to IEC 62722-2-1:	120 lm
Housing color:	white
Housing material:	aluminum
Outer diameter:	37 mm
Socket:	other
Light source:	LED not replaceable
Protection class:	III
With light source:	yes
Installation height/depth:	37 mm
With Operating device:	no
Suitable for recessed mounting:	yes
Height/depth:	3 mm
With motion detector:	no
Color temperature:	3100 K
Suitable for lamp power:	3.3 W
Beam angle:	medium beam 21-40°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Reflector:	without
Suitable for number of lamps:	1
Luminous flux:	120 lm
Cover material:	transparent glass
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	DC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
LED nominal current at constant current:	700 mA
Dimming dependent on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with Push button:	no
Without dimming function:	no
Light emission:	direct
Luminous efficacy:	36.36 lm/W

Characteristics

HAB12053173

Manufacturer

HAN12053173

GTIN4250047774464

Covering the luminaire with thermal insulation material possibleNo

Beam angleMedium beam 21-40°

Outer diameter37 mm

Rated luminous flux according to IEC 62722-2-1120lm

Operating deviceLED control gear current controlled

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth37 mm

Color temperature3100K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power3.3W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Height/Depth3 mm

LED nominal current at constant current700mA

Luminaire luminous efficacy36.36lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux120lm

Light distributionSymmetrical

Max. system performance3W

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Brushed surfaceNo

Without dimming functionNo

ReflectorWithout

Protection classIII

Voltage typeDC

AdjustabilityNot adjustable

Cover materialGlass transparent

Housing materialAluminum
