Brumberg 12075183 LED ceiling surface-mounted light 15W, 230V AC, LF: ww

Brumberg 12075183 LED ceiling surface-mounted light 15W, 230V AC, LF: ww

In stock

SKU: 179413

Price on request

€150.52

€0

Overview

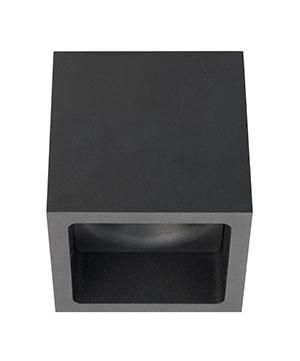

LED surface-mounted downlight, black, square. Compact design for harmonious implementation in harmonious, architectural room concepts. . Socket: without, Mounting type: surface-mounted, Installation location: ceiling mounting, Material: aluminum / glass, Protection type: according to DIN EN 60529: IP20, Protection class: (EN 61140) I, Voltage: 230V AC 50Hz, Power: 15 W, Number of lamps / sockets: 1.0 pcs, Luminous flux: 1125.0 lm, Light color: 3000 K, Light color: white, Beam angle: 38.0 °, Adjustability: not adjustable, With operating device: Yes, Type of dimming: switchable, Energy efficiency class: A++ to A,

Property	Value
Max. System power:	15 W
Rated luminous flux according to IEC 62722-2-1:	1125 lm
Housing color:	black
Housing material:	aluminum
Protection class (IP):	IP20
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With control gear:	yes
Suitable for recessed mounting:	no
Length:	100 mm
Width:	100 mm
Height/Depth:	100 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	230 V
Suitable for lamp power:	15 W
Beam angle:	medium beam 21-40°
Color rendering index CRI:	80-89
Suitable for Ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Reflector:	high-gloss
Suitable for number of lamps:	1
Luminous flux:	1125 lm
Cover material:	transparent glass
Voltage type:	AC
Light color:	white
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Brushed surface:	no
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming Trailing edge phase control:	no
Dimming leading edge phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light emission:	direct
Luminaire luminous efficacy:	75 lm/W

Characteristics

HAB12075183

Manufacturer

HAN12075183

GTIN4250047781462

Beam angleMedium beam 21-40°

Rated luminous flux according to IEC 62722-2-11125lm

Operating deviceLED control gear current controlled

Width100 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power15W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for truss mountingNo

Housing colorBlack

Height/Depth100 mm

Luminaire luminous efficacy75lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1125lm

Light distributionSymmetrical

Length100 mm

Max. system performance15W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

Brushed surfaceNo

Without dimming functionYes

ReflectorHigh gloss

IP protection)IP20

Protection classI

Voltage typeAC

AdjustabilityNot adjustable

Cover materialGlass transparent

Housing materialAluminum
