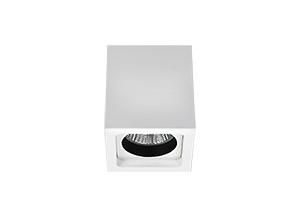

Brumberg 12076173 LED ceiling surface-mounted light 7W, 230V AC, LF: ww

Brumberg 12076173 LED ceiling surface-mounted light 7W, 230V AC, LF: ww

In stock

SKU: 179414

Price on request

€119.19

€0

Overview

LED surface-mounted downlight, IP54, white, square. Compact design for harmonious implementation in harmonious, architectural room concepts. . Socket: without, Mounting type: surface-mounted, Installation location: ceiling mounting, Material: aluminum / glass, Protection type: according to DIN EN 60529: IP54, Protection class: (EN 61140) I, Voltage: 230V AC 50Hz, Power: 7 W, Number of lamps / sockets: 1.0 pcs, Luminous flux: 450.0 lm, Light color: 3000 K, Light color: white, Beam angle: 30.0 °, Adjustability: not adjustable, With operating device: Yes, Type of dimming: switchable, Energy efficiency class: A++ to A,

Property	Value
Max. System power:	7 W
Rated luminous flux according to IEC 62722-2-1:	450 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP54
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With control gear:	yes
Suitable for recessed mounting:	no
Length:	70 mm
Width:	70 mm
Height/depth:	85 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	230 V
Suitable for lamp power:	7 W
Beam angle:	medium beam 21-40°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	not required
Reflector:	high-gloss
Suitable for number of bulbs:	1
Luminous flux:	450 lm
Cover material:	transparent glass
Voltage type:	AC
Light color:	white
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for Pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Brushed surface:	no
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine wave reduction dimming:	no
Touch and dim dimming:	no
Zigbee dimming:	no
Push button dimming:	no
Without dimming function:	yes
Light emission:	direct
Luminaire luminous efficacy:	64.29 lm/W

Characteristics

HAB12076173

Manufacturer

HAN12076173

GTIN4250047781400

Beam angleMedium beam 21-40°

Rated luminous flux according to IEC 62722-2-1450lm

Operating deviceNot required

Width70 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power7W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for truss mountingNo

Housing colorWhite

Height/Depth85 mm

Luminaire luminous efficacy64.29lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux450lm

Light distributionSymmetrical

Length70 mm

Max. system performance7W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

Brushed surfaceNo

Without dimming functionYes

ReflectorHigh gloss

IP protection)IP54

Protection classI

Voltage typeAC

AdjustabilityNot adjustable

Cover materialGlass transparent

Housing materialAluminum
