Brumberg 12713173 LED pendant light P&L 4W 3000K

In stock

SKU: 430878

Price on request

€270

€0

Overview

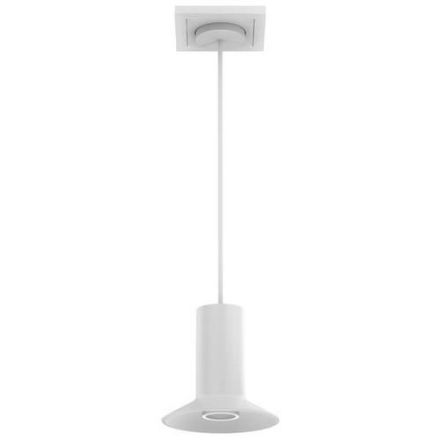

Plug & Light LED pendant light, structured white, round. Compact design for harmonious implementation in harmonious, architectural room concepts. Attention: only to be used in combination with the Plug & Light system from GIRA and JUNG. Dimming function can be accessed via corresponding components from GIRA or JUNG. Installation type: surface mounting, installation location: ceiling mounting, material: aluminum / glass, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) III, voltage: 12V, power: 4W, number of lamps / sockets: 1.0 pcs, luminous flux: 200 lm, color temperature: 3,000 K, beam angle: 35°, adjustability: not adjustable, dimmable: depends on operating device, type of dimming: other.

Property	Value
Max. System power:	4 W
Rated luminous flux according to IEC 62722-2-1:	200 lm
Color temperature:	3000 K
Suitable for number of lamps:	1
Height/depth:	1500 mm
Protection rating (IP):	IP20
Protection class:	III
Pendant length:	1500 mm
Housing material:	Aluminum
Suitable for computer workstations according to EN 12464-1:	yes
With light source:	yes
Nominal voltage:	12 V
Suspension included:	yes
Cover material:	structured plastic
Light source:	LED not replaceable
Housing color:	white
Design of the grid:	without
Reflector:	without
Suitable for light strip configuration:	no
Light distribution:	symmetrical
Light emission:	direct
Color rendering index CRI:	80-89
Suitable for emergency lighting:	no
Light color:	white
Voltage type:	DC
LED nominal current at constant current:	350 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming phase control:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Suitable for lamp power:	4 W

Characteristics

Manufacturer

HAN12713173

GTIN4251433922766

Suspension includedYes

Execution of the gridWithout

Rated luminous flux according to IEC 62722-2-1200lm

Suitable for computer workstations according to EN 12464-1Yes

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

Suitable for lamp power4W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Housing colorWhite

Height/Depth1500 mm

LED nominal current at constant current350mA

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Max. system performance4W

With light sourceYes

Nominal voltage12V

Without dimming functionNo

Pendulum length1500 mm

ReflectorWithout

IP protection)IP20

Protection classIII

Voltage typeDC

Cover materialPlastic structured

Housing materialAluminum
