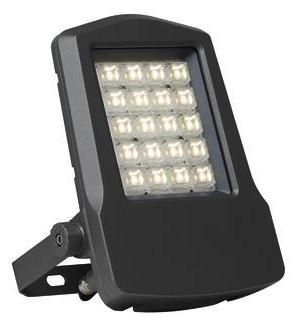

Brumberg 60801644 20W 4000K titanium LED spotlight

In stock
SKU: 873325
€309.34
Into a basketIn the basketGo

Overview

LED floodlight, IP66, matt titanium, rectangular. Compact design for harmonious implementation in harmonious, architectural room concepts. Installation type: surface-mounted installation, installation location: wall-mounted installation, material: aluminum / glass, protection class on the room side: according to DIN EN 60529: IP66, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 20W, number of lamps / sockets: 1.0 pcs, luminous flux: 2,890 lm, color temperature: 4,000 K, beam angle: 100°, with control gear: yes, type of dimming: switchable.

PropertyValue
Max. System power:20 W
Rated luminous flux according to IEC 62722-2-1:2890 lm
Housing color:Titanium
Housing material:Aluminum
Protection class (IP):IP66
Light source:LED not replaceable
Protection class:I
With light source:yes
With control gear:yes
Suitable for recessed mounting:no
With motion detector:no
Color temperature:4000 K
Nominal voltage:230 V
Suitable for lamp power:20 W
Color rendering index CRI:80-89
Suitable for ceiling mounting:no
Light distribution:symmetrical
Operating device:LED operating device voltage controlled
Impact resistance:IK08
Suitable for number of bulbs:1
Luminous flux:2890 lm
Cover material:transparent glass
Voltage type:AC
Light color:white
Adjustability:pivoting
Suitable for clamp mounting:no
Suitable for pendulum suspension:no
Suitable for pedestal/floor mounting:no
Suitable for truss mounting:no
With light sensor:no
Suitable for surface mounting:yes
Suitable for cable system:no
Brushed surface:no
Dimming depending on operating device:no
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:no
Dimming DMX:no
Dimming DSI:no
Dimming potentiometer (device integrated):no
Dimming GPRS:no
Dimming LineSwitch:no
Dimming manufacturer-specific:no
Dimming mains voltage modulation:no
Dimming trailing edge:no
Dimming leading edge:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Without dimming function:yes
Light emission:direct
Type of wiring:Termination
Luminaire luminous efficacy:144.5 lm/W

Characteristics

HAB20W 4000K titanium
ManufacturerBrumberg
HAN60801644
GTIN4251433951315
Type of wiringDiploma
Rated luminous flux according to IEC 62722-2-12890lm
Operating deviceLED control gear voltage controlled
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
Suitable for surface mountingYes
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Suitable for clamp mountingNo
Suitable for lamp power20W
Suitable for number of lamps1
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for truss mountingNo
Housing colorTitanium
Luminaire luminous efficacy144.5lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Luminous flux2890lm
Light distributionSymmetrical
Max. system performance20W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage230V
Brushed surfaceNo
Without dimming functionYes
Impact resistanceIK08
IP protection)IP66
Protection classI
Voltage typeAC
AdjustabilitySwiveling
Cover materialGlass transparent
Housing materialAluminum
