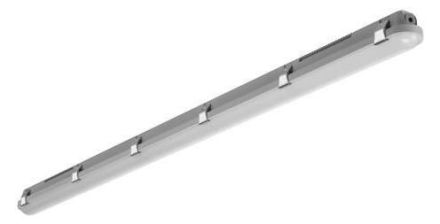

Brumberg 78013114 HUMID ONE 1490mm 28 LED damp-proof luminaire

Brumberg 78013114 HUMID ONE 1490mm 28 LED damp-proof luminaire

In stock

SKU: 873315

Price on request

€53.03

€0

Overview

LED damp-proof diffuser light, rectangular. Compact design for harmonious implementation in harmonious, architectural room concepts. Installation type: surface-mounted installation, installation location: ceiling/wall/pendant mounting, material: polycarbonate/stainless steel, protection class on the room side: according to DIN EN 60529: IP65, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 28W, number of lamps/sockets: 1.0 pcs, luminous flux: 3,600 lm, color temperature: 4,000 K, beam angle: 114°, adjustability: not adjustable, with control gear: yes, type of dimming: switchable.

Property	Value
Max. System power:	28 W
Rated luminous flux according to IEC 62722-2-1:	3600 lm
Suitable for number of lamps:	1
Length:	1490 mm
Width:	73 mm
Height/depth:	79 mm
Protection class (IP):	IP65
Protection class:	I
Nominal voltage:	230 V
Housing color:	gray
Housing material:	Plastic
Color temperature:	4000 K
Impact resistance:	IK08
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
With light source:	yes
Light source:	LED not replaceable
Socket:	other
With control gear:	yes
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Control gear:	electronic transformer
Suitable for recessed mounting:	no
Light color:	white
Suitable for light strip configuration:	no
Suitable for Pendulum suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in the device):	no
0-10 V dimming:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	no
Rated service life L70/B50 at 25 °C:	50000 h
Suitable for lamp power:	28 W
Luminaire luminous efficacy:	128.57 lm/W
Type of wiring:	suitable for through wiring

Characteristics

HABHUMID ONE 1490mm 28

Manufacturer

HAN78013114

GTIN4251433951575

Type of wiringSuitable for through wiring

Execution of the gridWithout

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-13600lm

Operating deviceElectronic transformer

Width73 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for lamp power28W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorGray

Height/Depth79 mm

Luminaire luminous efficacy128.57lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length1490 mm

Max. system performance28W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Without dimming functionYes

Impact resistanceIK08

IP protection)IP65

Protection classI

Voltage typeAC

Housing materialPlastic
