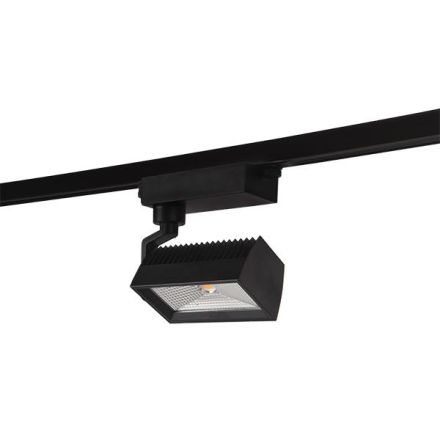

Brumberg 88387183 LED spotlight wallwasher 3000K black

Brumberg 88387183 LED spotlight wallwasher 3000K black

In stock

SKU: 431406

Price on request

€176.61

€0

Overview

LED track spotlight Wallwasher CORE, black. Compact design for harmonious implementation in harmonious, architectural room concepts. Incl. light source: 1 x LED COB, system power: 43.2 W, heat dissipation: passive (without fan), beam characteristics: wide flood, angle of rotation: rotatable/swivel, light incl. Euro adapter for standard 3-phase rails, incl. operating device, switchable, power factor > 0.9 (230 V AC 50 Hz), weight 2.3 kg. Socket: without, Mounting type: surface mounting, Installation location: ceiling mounting, Material: aluminum / glass, Protection type: according to DIN EN 60529: IP20, Protection class: (EN 61140) I, Voltage: 230V AC 50Hz, Power: 40 W, Number of lamps / sockets: 1.0 pcs, Light color: 3000 K, Light color: white, Beam angle: 100.0 °, Adjustability: Rotatable and head adjustable, With operating device: Yes, Type of dimming: switchable, Energy efficiency class: A++ to A,

Property	Value
Max. System power:	45 W
Rated luminous flux according to IEC 62722-2-1:	3700 lm
Housing color:	black
Housing material:	aluminum
Protection class (IP):	IP20
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With control gear:	yes
Suitable for recessed mounting:	no
Length:	265 mm
Width:	110 mm
Height/depth:	200 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	230 V
Suitable for lamp power:	45 W
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Reflector:	high-gloss
Suitable for number of lamps:	1
Luminous flux:	3700 lm
Voltage type:	AC
Light color:	white
Suitable for track mounting:	yes
Suitable for clamp mounting:	no
Suitable for pendant suspension:	no
Suitable for Pedestal/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Brushed surface:	no
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Luminous efficacy:	82.22 lm/W

Characteristics

Manufacturer

HAN88387183

GTIN4251433911753

Rated luminous flux according to IEC 62722-2-13700lm

Operating deviceLED control gear current controlled

Width110 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power45W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingYes

Suitable for truss mountingNo

Housing colorBlack

Height/Depth200 mm

Luminaire luminous efficacy82.22lm/W

LampsLED not replaceable

Light colorWhite

Luminous flux3700lm

Light distributionSymmetrical

Length265 mm

Max. system performance45W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

Brushed surfaceNo

Without dimming functionYes

ReflectorHigh gloss

IP protection)IP20

Protection classI

Voltage typeAC

Housing materialAluminum
