Brumberg P3605W LED recessed light point 1xPow.-LED 1W LF:ws

Brumberg P3605W LED recessed light point 1xPow.-LED 1W LF:ws

In stock

SKU: 179081

Price on request

€24.30

€0

Overview

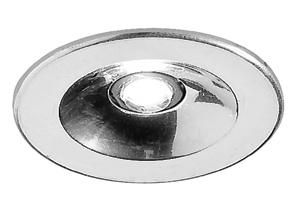

LED recessed light point 1xPow.-LED 1W LF:ws LED ceiling recessed light point, round, equipped with 1x high-performance LED for use in indoor areas for orientation or accent lighting, installation in hollow spaces with a low installation depth, with BRUMBERG plug connection 350 mA (Plug & Play), LED light source emitting downwards, beam angle approx. 120°. Not suitable for covering with thermal insulation material. This luminaire contains built-in LED lamps. The lamps cannot be replaced in the luminaire. Energy efficiency class A++ to A.

Property	Value
Rated luminous flux according to IEC 62722-2-1:	60 lm
Housing color:	Silver
Housing material:	Plastic
Protection class (IP):	IP20
Outer diameter:	30 mm
Socket:	other
Light source:	LED not replaceable
Protection class:	III
With light source:	yes
Installation diameter:	25 mm
Installation height/depth:	11 mm
With control gear:	no
Suitable for recessed mounting:	yes
Height/depth:	2 mm
With motion detector:	no
Color temperature:	6500 K
Suitable for lamp power:	1 W
Beam angle:	wide beam 41-80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Reflector:	without
Suitable for number of lamps:	1
Luminous flux:	60 lm
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	DC
Light color:	white
Suitable for Busbar mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
LED nominal current at constant current:	350 mA
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light emission:	direct
Luminous efficacy:	60 lm/W

Characteristics

HABP3605W

Manufacturer

HAN00P3605W

GTIN4250047704294

Covering the luminaire with thermal insulation material possibleNo

Beam angleWide beam 41-80°

Outer diameter30 mm

Rated luminous flux according to IEC 62722-2-160lm

Operating deviceLED control gear current controlled

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter25 mm

Installation height/depth11 mm

Color temperature6500K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power1W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorSilver

Height/Depth2 mm

LED nominal current at constant current350mA

Luminaire luminous efficacy60lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux60lm

Light distributionSymmetrical

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Brushed surfaceNo

Without dimming functionNo

ReflectorWithout

IP protection)IP20

Protection classIII

Voltage typeDC

AdjustabilityNot adjustable

Housing materialPlastic
