Brumberg P3654WW LED recessed light point 1xPow.-LED 1W LF:ww

Brumberg P3654WW LED recessed light point 1xPow.-LED 1W LF:ww

In stock

SKU: 179217

Price on request

€29.11

€0

Overview

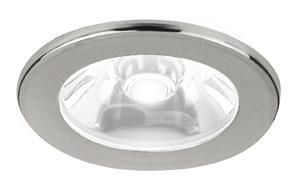

LED recessed light point 1xPow.-LED 1W LF:ww LED ceiling recessed light point, round, rigid, equipped with 1x high-performance LED, for use in indoor areas for orientation or accent lighting, installation in cavities with a low installation depth, with BRUMBERG plug connection 350mA (plug & play, series connection), LED light source emitting downwards, including optical lens approx. 10°, light color: warm white 3100K. Not suitable for covering with thermal insulation material. Energy efficiency class A++ to A. This luminaire contains built-in LED lamps. The lamps in the luminaire cannot be replaced.

Property	Value
Max. System power:	1.2 W
Rated luminous flux according to IEC 62722-2-1:	40 lm
Housing color:	chrome
Housing material:	plastic
Protection class (IP):	IP43
Outer diameter:	30 mm
Socket:	other
Light source:	LED not replaceable
Protection class:	III
With light source:	yes
Installation diameter:	25 mm
Installation height/depth:	20 mm
With control gear:	no
Suitable for recessed mounting:	yes
Height/depth:	2 mm
With motion detector:	no
Color temperature:	3000 K
Suitable for lamp power:	1.2 W
Beam angle:	narrow beam 11-20°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Reflector:	without
Suitable for number of lamps:	1
Luminous flux:	40 lm
Cover material:	transparent plastic
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	DC
Light color:	white
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface brushed:	no
LED nominal current at constant current:	350 mA
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
LineSwitch dimming:	no
Manufacturer-specific dimming:	no
Mains voltage modulation dimming:	no
Trailing edge dimming:	no
Phase control dimming:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine Wave Reduction dimming:	no
Touch and Dim dimming:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light emission:	direct
Luminous efficacy:	33.33 lm/W

Characteristics

HABP3654WW

Manufacturer

HAN0P3654WW

GTIN4250047753759

Covering the luminaire with thermal insulation material possibleNo

Beam angleNarrow beam 11-20°

Outer diameter30 mm

Rated luminous flux according to IEC 62722-2-140lm

Operating deviceLED control gear current controlled

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter25 mm

Installation height/depth20 mm

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power1.2W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for truss mountingNo

Housing colorChrome

Height/Depth2 mm

LED nominal current at constant current350mA

Luminaire luminous efficacy33.33lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux40lm

Light distributionSymmetrical

Max. system performance1.2W

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Brushed surfaceNo

Without dimming functionNo

ReflectorWithout

IP protection)IP43

Protection classIII

Voltage typeDC

AdjustabilityNot adjustable

Cover materialPlastic transparent

Housing materialPlastic
