Brumberg P3729W LED orientation light. 1.2W/350mA LF:ws

Brumberg P3729W LED orientation light. 1.2W/350mA LF:ws

In stock

SKU: 179116

Price on request

€64.24

€0

Overview

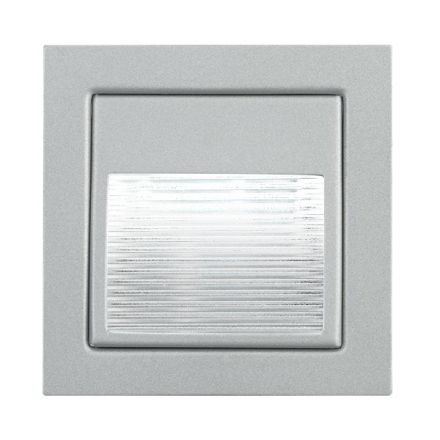

LED recessed wall light, matt aluminum, square. Recessed mounting, wall mounting. For installation in hollow walls using a leaf spring (optional accessory: plaster housing 3702, price: 9.70 euros). . Design: Plug&Play, Mounting type: Recessed mounting, Mounting location: Wall mounting, Material: Steel/aluminum, Protection class on the room side: according to DIN EN 60529: IP20, Protection class: (EN 61140) III, Power: 1.2W, Number of lamps/sockets: 1.0 pcs, Luminous flux: 60lm, Color temperature: 6,500 K, Adjustability: not adjustable, without control gear, Type of dimming: depends on the control gear.

Property	Value
Cover material:	other
With light source:	yes
Suitable for surface mounting:	no
With control gear:	no
Light source:	LED not replaceable
Control gear:	LED control gear current-controlled
Housing color:	Aluminum
Width:	83 mm
Protection class (IP):	IP20
Installation width:	70 mm
Type of cover:	slats
Material of the housing:	steel
Rated luminous flux according to IEC 62722-2-1:	60 lm
Color temperature:	6500 K
Color rendering index CRI:	80-89
Light color:	white
Voltage type:	DC
Suitable for number of bulbs:	1
LED nominal current at Constant current:	350 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming dependent on Operating device:	no
Without dimming function:	no
Protection class:	III
Suitable for lamp power:	1.2 W
Max. system power:	1.2 W
Height/depth:	83 mm
Installation height/depth:	40 mm
Installation length:	70 mm

Characteristics

HABP3729W

Manufacturer

HAN00P3729W

GTIN4250047729907

Type of coverSlats

Rated luminous flux according to IEC 62722-2-160lm

Operating deviceLED control gear current controlled

Width83 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width70 mm

Installation height/depth40 mm

Installation length70 mm

Color temperature6500K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for lamp power1.2W

Suitable for number of lamps1

Housing colorAluminum

Height/Depth83 mm

LED nominal current at constant current350mA

LampsLED not replaceable

Light colorWhite

Max. system performance1.2W

With operating deviceNo

With light sourceYes

Without dimming functionNo

IP protection)IP20

Protection classIII

Voltage typeDC

Cover materialOther

Housing materialSteel
