Brumberg P3817WW LED floor recessed light. 1W/350mA, LF:ww

Brumberg P3817WW LED floor recessed light. 1W/350mA, LF:ww

In stock

SKU: 179226

Price on request

€100.45

€0

Overview

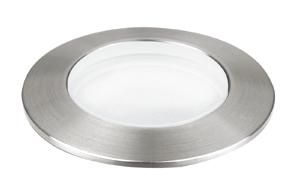

LED floor recessed light 1W/350mA, LF:ww Round LED floor recessed light made of stainless steel, for use in the area of orientation lighting, LED light source emits direct light, with satin glass cover, including aluminum mounting sleeve, light color: warm white 3100K, for connection to 350 mA constant current, cable screw connection: 1 x M12, connecting cable approx. 20 cm. Energy efficiency class A++ to A. This light contains built-in LED lamps. The lamps in the light cannot be replaced.

Property	Value
With light source:	yes
With control gear:	no
Installation diameter:	39 mm
Housing color:	stainless steel
Control gear:	LED control gear, current-controlled
Outer diameter:	42.5 mm
Light source:	LED not replaceable
Suitable for number of light sources:	1
Protection class (IP):	IP65
Protection class:	III
Electrical connection with plug-in system:	no
Cover material:	opal glass
Adjustable:	no
Light distribution:	symmetrical
Roll-over:	no
Rated luminous flux according to IEC 62722-2-1:	40 lm
Color temperature:	3000 K
Color rendering index CRI:	80-89
Light color:	white
Max. load:	1000 kg
Voltage type:	DC
LED nominal current at constant current:	350 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
LineSwitch dimming:	no
Manufacturer-specific dimming:	no
Mains voltage modulation dimming:	no
Trailing edge dimming:	no
Phase control dimming:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine Wave Reduction dimming:	no
Touch and Dim dimming:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Suitable for lamp power:	1 W
Max. system power:	1 W
Installation height/depth:	90 mm
Type of wiring:	Termination

Characteristics

HABP3817WW

Manufacturer

HAN0P3817WW

GTIN4250047753643

Type of wiringDiploma

Outer diameter42.5 mm

Rated luminous flux according to IEC 62722-2-140lm

Operating deviceLED control gear current controlled

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter39 mm

Installation height/depth90 mm

Electrical connection with plug-in systemNo

Color temperature3000K

Color rendering index CRI80-89

Suitable for lamp power1W

Suitable for number of lamps1

Housing colorStainless steel

AdjustableNo

LED nominal current at constant current350mA

LampsLED not replaceable

Light colorWhite

Light distributionSymmetrical

Max. load1000 kg

Max. system performance1W

With operating deviceNo

With light sourceYes

Without dimming functionNo

IP protection)IP65

Protection classIII

Voltage typeDC

Cover materialGlass opal

RolloverNo
