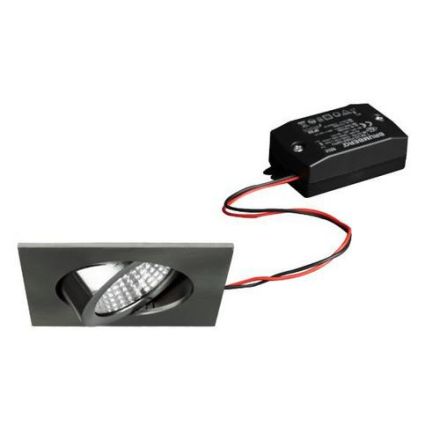

LED recessed spotlight set, switchable, matt nickel, square. Designed in a compact shape for tool-free quick installation for ceiling installation. Set including converter for 230 V mains voltage, switchable, dimensions of converter: L 68 x W 35 x H 21 mm, mounting type: recessed mounting, mounting location: ceiling mounting, material: aluminum / plastic, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 6W, number of lamps / sockets: 1.0 pcs, luminous flux: 640 lm, color temperature: 3,000 K, light color: white, beam angle: 38°, adjustability: pivoting, with operating device: yes, type of dimming: switchable.
| Property | Value |
| Max. System power: | 6 W |
| Rated luminous flux according to IEC 62722-2-1: | 630 lm |
| Housing color: | Nickel |
| Housing material: | Aluminum |
| Protection class (IP): | IP20 |
| Light source: | LED not replaceable |
| Protection class: | II |
| With light source: | yes |
| Installation height/depth: | 38 mm |
| With control gear: | yes |
| Suitable for recessed mounting: | yes |
| Length: | 82 mm |
| Width: | 82 mm |
| Height/depth: | 2 mm |
| With motion detector: | no |
| Color temperature: | 3000 K |
| Nominal voltage: | 230 V |
| Suitable for lamp power: | 6 W |
| Beam angle: | medium beam 21-40° |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Reflector: | high-gloss |
| Suitable for number of bulbs: | 1 |
| Luminous flux: | 630 lm |
| Covering of the lamp with thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | white |
| Adjustability: | pivotable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for platform/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for cable system: | no |
| Brushed surface: | no |
| Dimming depending on operating device: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light emission: | direct |
| Wiring type: | suitable for through wiring |
| Luminaire luminous efficacy: | 105 lm/W |
