Brumberg 39373073 LED recessed spotlight 230V dim2warm white

Brumberg 39373073 LED recessed spotlight 230V dim2warm white

In stock

SKU: 430599

Price on request

€59.25

€0

Overview

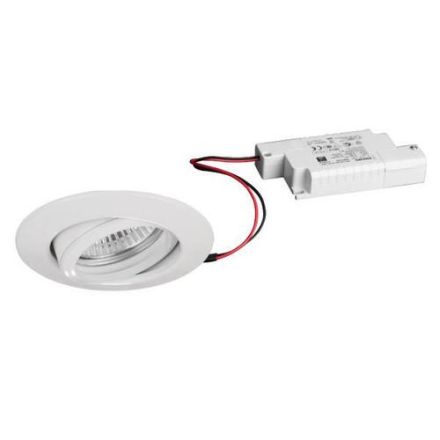

LED recessed spotlight set, dim2warm, trailing edge dimmable, white, round. Compact design for tool-free, quick installation in ceilings. If the light is dimmed, the color temperature decreases. Set including converter for 230 V mains voltage, trailing edge dimmable, converter dimensions: L 110 x W 50 x H 19 mm, mounting type: recessed mounting, mounting location: ceiling mounting, material: cast / aluminum / glass / plastic, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 6W, number of lamps / sockets: 1.0 pcs, luminous flux: 460 lm, color temperature: from 1,800 K to 3,000 K, beam angle: 38°, adjustability: pivoting, with operating device: yes, dimmable: yes, type of dimming: trailing edge.

Property	Value
Max. System power:	6 W
Rated luminous flux according to IEC 62722-2-1:	430 lm
Housing color:	white
Housing material:	other
Protection class (IP):	IP20
Outer diameter:	88 mm
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	50 mm
With Operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	5 mm
With motion detector:	no
Color temperature:	1800 to 3000 K
Nominal voltage:	230 V
Suitable for lamp power:	6 W
Beam angle:	medium beam 21-40°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Reflector:	high-gloss
Suitable for number of lamps:	1
Luminous flux:	430 lm
Cover material:	transparent glass
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
Dimming depends on Operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	yes
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	no
Light emission:	direct
Wiring type:	suitable for through wiring
Luminaire luminous efficacy:	71.67 lm/W

Characteristics

Manufacturer

HAN39373073

GTIN4251433916840

Covering the luminaire with thermal insulation material possibleNo

Type of wiringSuitable for through wiring

Beam angleMedium beam 21-40°

Outer diameter88 mm

Rated luminous flux according to IEC 62722-2-1430lm

Operating deviceLED control gear current controlled

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeYes

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth50 mm

Color temperature1800 to 3000 K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power6W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Height/Depth5 mm

Luminaire luminous efficacy71.67lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux430lm

Light distributionSymmetrical

Max. system performance6W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

Brushed surfaceNo

Without dimming functionNo

ReflectorHigh gloss

IP protection)IP20

Protection classII

Voltage typeAC

AdjustabilitySwiveling

Cover materialGlass transparent

Housing materialOther
