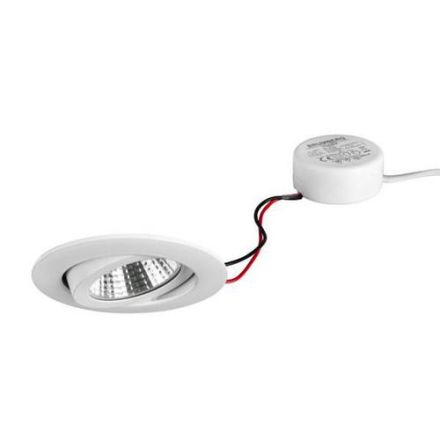

Brumberg 40363073 LED recessed spotlight 230V 6W 3000K white

In stock
SKU: 430581
€44.19
Into a basketIn the basketGo

Overview

LED recessed spotlight set, trailing edge dimmable (round converter), white, round. Designed in a compact design for quick, tool-free installation for ceiling installation. Set including converter for 230 V mains voltage, trailing edge dimmable, dimensions of converter: D 51 x H 24 mm, mounting type: recessed mounting, mounting location: ceiling mounting, material: aluminum / plastic, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 6W, number of lamps / sockets: 1.0 pieces, luminous flux: 640 lm, color temperature: 3,000 K, beam angle: 38°, adjustability: pivoting, with operating device: yes, dimmable: yes, type of dimming: trailing edge.

PropertyValue
Max. System power:6 W
Rated luminous flux according to IEC 62722-2-1:630 lm
Housing color:white
Housing material:aluminum
Protection class (IP):IP20
Outer diameter:82 mm
Light source:LED not replaceable
Protection class:II
With light source:yes
Installation height/depth:36 mm
With Operating device:yes
Suitable for recessed mounting:yes
Height/depth:4 mm
With motion detector:no
Color temperature:3000 K
Nominal voltage:230 V
Suitable for lamp power:6 W
Beam angle:medium beam 21-40°
Color rendering index CRI:80-89
Suitable for ceiling mounting:yes
Light distribution:symmetrical
Operating device:LED operating device, current-controlled
Reflector:high-gloss
Suitable for number of lamps:1
Luminous flux:630 lm
Covering of the lamp with thermal insulation material possible:no
Voltage type:AC
Light color:white
Adjustability:pivotable
Suitable for clamp mounting:no
Suitable for pendulum suspension:no
Suitable for platform/floor mounting:no
Suitable for truss mounting:no
With light sensor:no
Suitable for surface mounting:no
Suitable for cable system:no
Brushed surface:no
Dimming depending on operating device:no
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:no
Dimming DMX:no
Dimming DSI:no
Dimming potentiometer (device-integrated):no
Dimming GPRS:no
Dimming LineSwitch:no
Dimming manufacturer-specific:no
Dimming mains voltage modulation:no
Dimming Trailing edge phase control:yes
Dimming leading edge phase control:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Without dimming function:no
Light emission:direct
Type of Wiring:suitable for through wiring
Luminaire luminous efficacy:105 lm/W

Characteristics

ManufacturerBrumberg
HAN40363073
GTIN4251433916710
Covering the luminaire with thermal insulation material possibleNo
Type of wiringSuitable for through wiring
Beam angleMedium beam 21-40°
Outer diameter82 mm
Rated luminous flux according to IEC 62722-2-1630lm
Operating deviceLED control gear current controlled
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeYes
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Installation height/depth36 mm
Color temperature3000K
Color rendering index CRI80-89
Suitable for surface mountingNo
Suitable for ceiling mountingYes
Suitable for flush mountingYes
Suitable for clamp mountingNo
Suitable for lamp power6W
Suitable for number of lamps1
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for truss mountingNo
Housing colorWhite
Height/Depth4 mm
Luminaire luminous efficacy105lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Luminous flux630lm
Light distributionSymmetrical
Max. system performance6W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage230V
Brushed surfaceNo
Without dimming functionNo
ReflectorHigh gloss
IP protection)IP20
Protection classII
Voltage typeAC
AdjustabilitySwiveling
Housing materialAluminum
