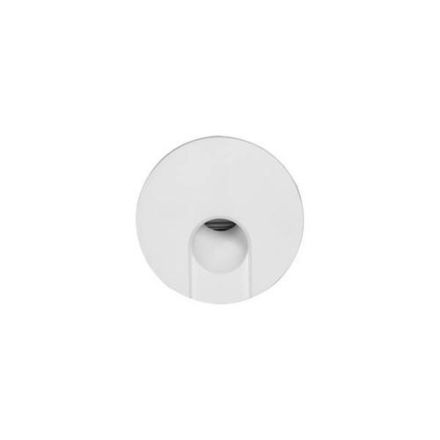

Brumberg 10156073 10156 230V AC 1.5W 3000K white LED recessed wall light

In stock
SKU: 814280
€86.07
Into a basketIn the basketGo

Overview

LED recessed wall light, for device boxes, white, round. Recessed mounting, wall mounting For installation in hollow wall or flush-mounted boxes with an installation depth of at least 62 mm (screw spacing: 60 mm). Compatible with Kaiser device boxes for hollow wall installation, item no. 9064-02, 9264-12 or 9464-02, or flush-mounted installation, item no. 1556-04. Attention: Delivery is WITHOUT device box. Mounting type: built-in mounting, mounting location: wall mounting, material: aluminum / steel / plastic, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 1.5W, number of lamps / sockets: 1.0 pcs, luminous flux: 70 lm, color temperature: 3,000 K, adjustability: not adjustable, with operating device: yes, dimmable: no, type of dimming: switchable.

PropertyValue
Max. System power:1.5 W
Rated luminous flux according to IEC 62722-2-1:70 lm
Suitable for number of lamps:1
Height/depth:6 mm
Protection rating (IP):IP20
Protection class:I
Nominal voltage:230 V
Housing color:white
Housing material:aluminum
Color temperature:3000 K
Color rendering index CRI:90-100
Suitable for ceiling mounting:no
Suitable for wall mounting:yes
Outer diameter:75 mm
Voltage type:AC
With motion detector:no
With light source:yes
Light source:LED not replaceable
With operating device:yes
Cover material:without cover
Installation height/depth:65 mm
Without dimming function:yes
Light distribution:asymmetrical
Operating device:LED operating device, current-controlled
Suitable for recessed mounting:yes
Suitable for strip light configuration:no
Suitable for pendant suspension:no
Suitable for surface mounting:no
Installation diameter:68 mm
Cover of the luminaire with thermal insulation material possible:no
Dimming DMX:no
Dimming DSI:no
Dimming LineSwitch:no
Dimming potentiometer (device-integrated):no
Dimming 0-10 V:no
Dimming GPRS:no
Dimming 1-10 V:no
Dimming manufacturer-specific:no
Dimming DALI:no
Dimming mains voltage modulation:no
Dimming trailing edge:no
Dimming leading edge:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Dimming dependent on Operating device:no
Rated service life L70/B50 at 25 °C:50000 h
Suitable for lamp power:1.5 W
Luminaire luminous efficacy:46.67 lm/W

Characteristics

HAB10156 230V AC 1,5W 3000K white
ManufacturerBrumberg
HAN10156073
GTIN4251433925637
Covering the luminaire with thermal insulation material possibleNo
Outer diameter75 mm
Rated lifetime L70/B50 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-170lm
Operating deviceLED control gear current controlled
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Installation diameter68 mm
Installation height/depth65 mm
Color temperature3000K
Color rendering index CRI90-100
Suitable for surface mountingNo
Suitable for ceiling mountingNo
Suitable for flush mountingYes
Suitable for lamp power1.5W
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorWhite
Height/Depth6 mm
Luminaire luminous efficacy46.67lm/W
LampsLED not replaceable
Light distributionAsymmetrical
Max. system performance1.5W
With operating deviceYes
With motion detectorNo
With light sourceYes
Nominal voltage230V
Without dimming functionYes
IP protection)IP20
Protection classI
Voltage typeAC
Cover materialWithout cover
Housing materialAluminum
