Brumberg 88397174 32W 4000K ws LED track spotlight

Brumberg 88397174 32W 4000K ws LED track spotlight

In stock

SKU: 871809

Price on request

€116.04

€0

Overview

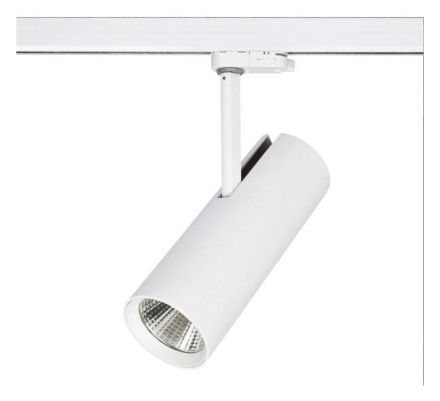

LED track spotlight, structured white, round. Compact design for harmonious implementation in harmonious, architectural room concepts. Heat dissipation: passive (without fan), including control gear, switchable, (230 V AC 50 Hz). Light including Euro adapter for standard 3-phase rails. Mounting type: surface mounting, mounting location: ceiling mounting, material: aluminum, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 32W, number of lamps / sockets: 1.0 pcs, luminous flux: 3,870 lm, color temperature: 4,000 K, light color: white, beam angle: 30°, adjustability: rotatable and head adjustable, with control gear: yes, type of dimming: switchable.

Property	Value
Max. System power:	32 W
Rated luminous flux according to IEC 62722-2-1:	3870 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	85 mm
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With control gear:	yes
Suitable for Recessed installation:	no
Length:	235 mm
Width:	85 mm
Height/depth:	263 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	230 V
Suitable for lamp power:	32 W
Beam angle:	medium beam 21-40°
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Reflector:	high-gloss
Suitable for number of lamps:	1
Luminous flux:	3870 lm
Voltage type:	AC
Light color:	white
Suitable for track mounting:	yes
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Brushed surface:	no
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge phase control:	no
Dimming leading edge phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Type of Wiring:	Termination
Luminaire luminous efficacy:	120.94 lm/W

Characteristics

HAB88397174 32W 4000K white

Manufacturer

HAN88397174

GTIN4251433938583

Type of wiringDiploma

Beam angleMedium beam 21-40°

Outer diameter85 mm

Rated luminous flux according to IEC 62722-2-13870lm

Operating deviceLED control gear current controlled

Width85 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI90-100

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power32W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingYes

Suitable for truss mountingNo

Housing colorWhite

Height/Depth263 mm

Luminaire luminous efficacy120.94lm/W

LampsLED not replaceable

Light colorWhite

Luminous flux3870lm

Light distributionSymmetrical

Length235 mm

Max. system performance32W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

Brushed surfaceNo

Without dimming functionYes

ReflectorHigh gloss

IP protection)IP20

Protection classI

Voltage typeAC

AdjustabilitySwiveling

Housing materialAluminum
