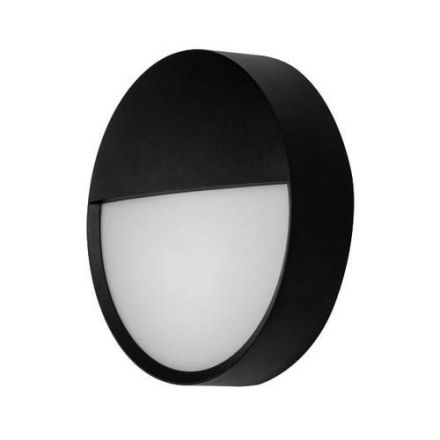

Brumberg 10037183 black 12W 680lm 3000/4000/5700 K IP65 LED wall light LB20

In stock
SKU: 814007
€95.51
Into a basketIn the basketGo

Overview

Material: aluminum / plastic, power: 12 W, light source: LED, energy efficiency class: A++ to A, protection type: IP65, voltage: 230V AC 50Hz, protection class: I

PropertyValue
Max. System power:12 W
Rated luminous flux according to IEC 62722-2-1:880 lm
Suitable for number of lamps:1
Height/depth:75 mm
Protection rating (IP):IP65
Protection class:I
Nominal voltage:230 V
Housing color:black
Housing material:aluminum
Color temperature:3000 to 5700 K
Impact resistance:IK10
Color rendering index CRI:80-89
Suitable for ceiling mounting:no
Suitable for wall mounting:yes
Outer diameter:255 mm
Voltage type:AC
With motion detector:no
With light source:yes
Light source:LED not replaceable
With operating device:yes
Cover material:Opal plastic
Without dimming function:yes
Light emission:direct
Light distribution:symmetrical
With light sensor:no
Operating device:LED operating device, current-controlled
Suitable for recessed mounting:no
Light color:white
Suitable for light strip configuration:no
Suitable for pendant suspension:no
Suitable for surface mounting:yes
Suitable for emergency lighting:no
DMX dimming:no
DSI dimming:no
With air slots:no
LineSwitch dimming:no
Potentiometer dimming (integrated in the device):no
0-10 V dimming:no
GPRS dimming:no
Dimming 1-10 V:no
Manufacturer-specific dimming:no
DALI dimming:no
Mains voltage modulation dimming:no
Trailing edge dimming:no
Phase control dimming:no
Programmable dimming:no
RF dimming:no
Sine wave reduction dimming:no
Touch and dim dimming:no
Dimming Zigbee:no
Dimming with push button:no
Dimming depending on operating device:no
Rated service life L70/B50 at 25 °C:50000 h
Suitable for lamp power:12 W
Luminaire luminous efficacy:73.33 lm/W
Type of wiring:suitable for through wiring

Characteristics

HABBlack 12W 680lm 3000/4000/5700K IP65
ManufacturerBrumberg
HAN10037183
GTIN4251433925897
Type of wiringSuitable for through wiring
Outer diameter255 mm
Rated lifetime L70/B50 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-1880lm
Operating deviceLED control gear current controlled
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature3000 to 5700 K
Color rendering index CRI80-89
Suitable for surface mountingYes
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Suitable for lamp power12W
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorBlack
Height/Depth75 mm
Luminaire luminous efficacy73.33lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributionSymmetrical
Max. system performance12W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage230V
Without dimming functionYes
Impact resistanceIK10
IP protection)IP65
Protection classI
Voltage typeAC
Cover materialPlastic opal
Housing materialAluminum
Brumberg 10037183 black 12W 680lm 3000/4000/5700 K IP65 LED wall light LB20
