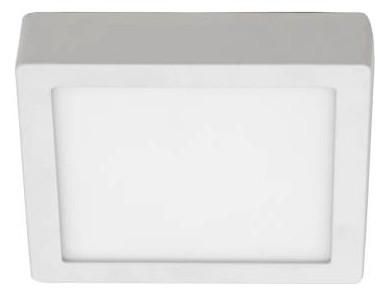

Brumberg 12249073 12249 230V AC 18W white 3000K LED wall / ceiling light

In stock
SKU: 814319
€76.35
Into a basketIn the basketGo

Overview

LED surface-mounted panel Flat37, white, square. Compact design for harmonious implementation in harmonious, architectural room concepts. . Socket: without, mounting type: surface-mounted, installation location: ceiling mounting, material: aluminum / plastic, protection type: according to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 18W, number of lamps / sockets: 1.0 pcs, luminous flux: 1,290lm, color temperature: 3000K, beam angle: 100°, adjustability: not adjustable, with control gear, type of dimming: switchable, .

PropertyValue
Max. System power:18 W
Rated luminous flux according to IEC 62722-2-1:1290 lm
Housing color:white
Housing material:aluminum
Protection class (IP):IP20
Light source:LED not replaceable
Protection class:I
With light source:yes
With control gear:yes
Suitable for recessed mounting:no
Length:180 mm
Width:180 mm
Height/depth:37 mm
With motion detector:no
Color temperature:3000 K
Nominal voltage:230 V
Suitable for lamp power:18 W
Beam angle:wide beam 41-80°
Color rendering index CRI:80-89
Suitable for Ceiling mounting:yes
Light distribution:symmetrical
Operating device:LED operating device, current-controlled
Reflector:without
Suitable for number of lamps:1
Luminous flux:1290 lm
Cover material:opal plastic
Voltage type:AC
Light color:white
Adjustability:not adjustable
Suitable for clamp mounting:no
Suitable for pendulum suspension:no
Suitable for platform/floor mounting:no
Suitable for truss mounting:no
With light sensor:no
Suitable for surface mounting:yes
Suitable for cable system:no
Brushed surface:no
Dimming depending on operating device:no
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:no
Dimming DMX:no
Dimming DSI:no
Dimming potentiometer (device-integrated):no
Dimming GPRS:no
Dimming LineSwitch:no
Dimming manufacturer-specific:no
Dimming mains voltage modulation:no
Dimming Trailing edge phase control:no
Dimming leading edge phase control:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Without dimming function:yes
Light emission:direct
Type of Wiring:suitable for through wiring
Luminaire luminous efficacy:71.67 lm/W

Characteristics

HAB12249 230V AC 18W white 3000K
ManufacturerBrumberg
HAN12249073
GTIN4251433925866
Type of wiringSuitable for through wiring
Beam angleWide beam 41-80°
Rated luminous flux according to IEC 62722-2-11290lm
Operating deviceLED control gear current controlled
Width180 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature3000K
Color rendering index CRI80-89
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for clamp mountingNo
Suitable for lamp power18W
Suitable for number of lamps1
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for truss mountingNo
Housing colorWhite
Height/Depth37 mm
Luminaire luminous efficacy71.67lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Luminous flux1290lm
Light distributionSymmetrical
Length180 mm
Max. system performance18W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage230V
Brushed surfaceNo
Without dimming functionYes
ReflectorWithout
IP protection)IP20
Protection classI
Voltage typeAC
AdjustabilityNot adjustable
Cover materialPlastic opal
Housing materialAluminum
