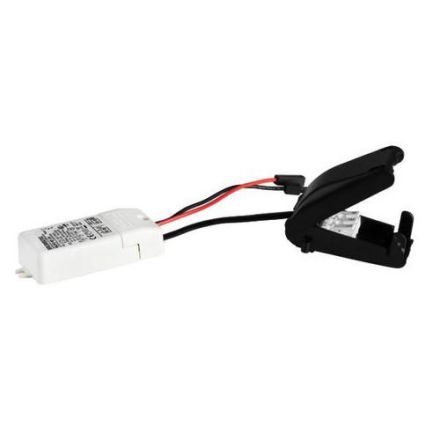

Brumberg 17640020 350mA 4.2-10W phase dimmable LED control gear

In stock
SKU: 814120
€39.93
Into a basketIn the basketGo

Overview

LED converter 350 mA, trailing edge dimmable. This converter is protected by safety devices against overvoltage and short circuits as well as thermal and electrical overload. The input and output terminals are suitable for cables with a cross-section of up to 2.5 mm. Material: plastic, protection type: according to DIN EN 60529: IP20, protection class: (EN 61140) II, current: 350 mA, voltage: 230V AC 50Hz, power: 4.2-10W, type of dimming: trailing edge.

PropertyValue
Output power:4.2 to 10 W
Protection class (IP):IP20
Output voltage:12 to 28 V
Output current:350 mA
Protection class:II
Length:102 mm
Width:38 mm
Height:21 mm
Design:dynamic
Housing:Plastic housing
Suitable for outdoor use:no
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:no
Dimming DSI:no
Dimming DMX:no
Dimming potentiometer (integrated in the device):no
Dimming GPRS:no
Dimming LineSwitch:no
Dimming manufacturer-specific:no
Dimming mains voltage modulation:no
Dimming trailing edge:yes
Dimming leading edge:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Without dimming function:no

Characteristics

Output power4.2 to 10 W
Output current350 mA
HAB350mA 4.2-10W phase dimmable
ManufacturerBrumberg
HAN17640020
GTIN4251433923879
VersionDynamic
Output voltage12 to 28 V
Width38 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeYes
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Suitable for outdoor useNo
HousingPlastic housing
Height21 mm
Length102 mm
Without dimming functionNo
IP protection)IP20
Protection classII
