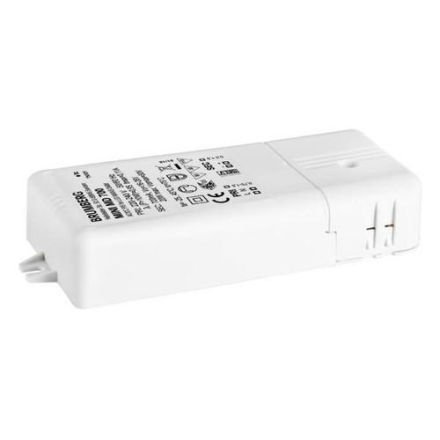

Brumberg 17746010 700mA 11.2-20W phase dimmable LED control gear

In stock
SKU: 814130
€32.97
Into a basketIn the basketGo

Overview

LED converter 700 mA, trailing edge dimmable. This converter is protected by safety devices against overvoltage and short circuits as well as thermal and electrical overload. The input and output terminals are suitable for cables with a cross-section of up to 1.5 mm. Material: plastic, protection type: according to DIN EN 60529: IP20, protection class: (EN 61140) II, current: 700 mA, voltage: 230V AC 50Hz, power: 11.2-20W, type of dimming: trailing edge.

PropertyValue
Output power:11.2 to 20 W
Protection class (IP):IP20
Output voltage:16 to 28 V
Output current:700 mA
Protection class:II
Length:110.5 mm
Width:52 mm
Height:22 mm
Design:dynamic
Housing:Plastic housing
Suitable for outdoor use:no
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:no
Dimming DSI:no
Dimming DMX:no
Dimming potentiometer (integrated in the device):no
Dimming GPRS:no
Dimming LineSwitch:no
Dimming manufacturer-specific:no
Dimming mains voltage modulation:no
Dimming trailing edge:yes
Dimming leading edge:yes
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Without dimming function:no

Characteristics

Output power11.2 to 20 W
Output current700 mA
HAB700mA 11.2-20W phase dimmable
ManufacturerBrumberg
HAN17746010
GTIN4251433924074
VersionDynamic
Output voltage16 to 28 V
Width52 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeYes
Dimming phase controlYes
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Suitable for outdoor useNo
HousingPlastic housing
Height22 mm
Length110.5 mm
Without dimming functionNo
IP protection)IP20
Protection classII
