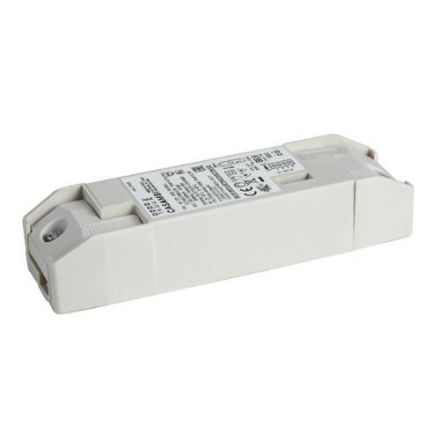

LED converter 700mA, Casambi dimmable. This operating device meets the requirements for safety lighting systems according to DIN EN 501720108-100:2005-01. This converter is protected by safety devices against overvoltage and short circuits as well as thermal and electrical overload. The input and output terminals are suitable for cables with a cross-section of up to 1.5 mm. Material: plastic, protection type: according to DIN EN 60529: IP20, protection class: (EN 61140) II, current: 700 mA, voltage: 230V AC 50Hz, power: 7-38W, dimmable: yes, type of dimming: Casambi.
| Property | Value |
| Output power: | 7 to 38 W |
| Protection class (IP): | IP20 |
| Output voltage: | 10 to 54 V |
| Output current: | 700 mA |
| Protection class: | II |
| Length: | 146.5 mm |
| Width: | 44 mm |
| Height: | 30 mm |
| Design: | dynamic |
| Housing: | Plastic housing |
| Suitable for outdoor use: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DSI: | no |
| Dimming DMX: | no |
| Dimming potentiometer (integrated in the device): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
