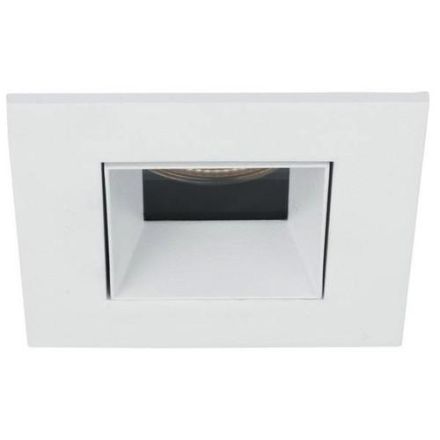

Brumberg 12036174 12036 500mA 9.2W ws nw LED recessed ceiling spotlight

Brumberg 12036174 12036 500mA 9.2W ws nw LED recessed ceiling spotlight

In stock

SKU: 814377

Price on request

€95.37

€0

Overview

LED recessed downlight, IP44, structured white, square. Designed in a compact design for tool-free, quick installation for ceiling installation. Installation type: recessed installation, installation location: ceiling installation, material: aluminum / glass / plastic, protection class on the room side: according to DIN EN 60529: IP44*, protection class: (EN 61140) III, power: 9.2W, number of lamps / sockets: 1.0 pcs, luminous flux: 840lm, color temperature: 4,000 K, light color: white, beam angle: 33°, adjustability: not adjustable, without control gear, type of dimming: depends on the control gear.

Property	Value
Max. System power:	9.2 W
Rated luminous flux according to IEC 62722-2-1:	840 lm
Housing color:	white
Housing material:	aluminum
Light source:	LED not replaceable
Protection class:	III
With light source:	yes
Installation height/depth:	72 mm
With control gear:	no
Suitable for recessed mounting:	yes
Length:	83 mm
Width:	83 mm
Height/depth:	3 mm
With motion detector:	no
Color temperature:	4000 K
Suitable for lamp power:	9.2 W
Beam angle:	medium beam 21-40°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Reflector:	high-gloss
Suitable for number of lamps:	1
Luminous flux:	840 lm
Cover material:	transparent glass
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	DC
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for Clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
LED nominal current at constant current:	500 mA
Dimming depends on Operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	no
Light emission:	direct
Luminous efficacy:	91.3 lm/W

Characteristics

HAB12036 500mA 9.2W white

Manufacturer

HAN12036174

GTIN4251433927389

Covering the luminaire with thermal insulation material possibleNo

Beam angleMedium beam 21-40°

Rated luminous flux according to IEC 62722-2-1840lm

Operating deviceLED control gear current controlled

Width83 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth72 mm

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power9.2W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Height/Depth3 mm

LED nominal current at constant current500mA

Luminaire luminous efficacy91.3lm/W

LampsLED not replaceable

Light emissionDirect

Luminous flux840lm

Light distributionSymmetrical

Length83 mm

Max. system performance9.2W

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Brushed surfaceNo

Without dimming functionNo

ReflectorHigh gloss

Protection classIII

Voltage typeDC

AdjustabilityNot adjustable

Cover materialGlass transparent

Housing materialAluminum
