Brumberg 12219733 12219 LED EBL 10W 350mA be/sw LED recessed ceiling spotlight

Brumberg 12219733 12219 LED EBL 10W 350mA be/sw LED recessed ceiling spotlight

In stock

SKU: 814299

Price on request

€90.72

€0

Overview

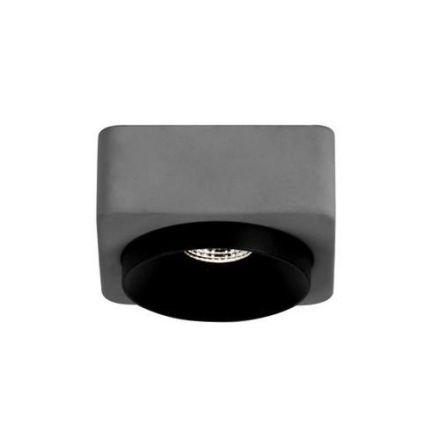

LED recessed downlight, concrete / structural black, square. Designed in a compact shape for tool-free quick installation for ceiling installation. Version: Plug&Play, Installation type: recessed installation, Installation location: ceiling installation, Material: concrete / aluminum / plastic, Protection class on the room side: according to DIN EN 60529: IP20, Protection class: (EN 61140) III, Power: 6.8W, Number of lamps / sockets: 1.0 pcs, Luminous flux: 520 lm, Beam angle: 40°, Adjustability: not adjustable, With control gear: No, Dimmable: Depends on control gear, Type of dimming: Depends on control gear.

Property	Value
Rated luminous flux according to IEC 62722-2-1:	520 lm
Housing color:	black
Housing material:	other
Protection class (IP):	IP20
Socket:	other
Light source:	LED not replaceable
Protection class:	III
With light source:	yes
Installation height/depth:	45 mm
With control gear:	no
Suitable for recessed mounting:	yes
Length:	97 mm
Width:	97 mm
Height/depth:	55 mm
With motion detector:	no
Color temperature:	3000 K
Suitable for lamp power:	6.8 W
Beam angle:	medium beam 21-40°
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Reflector:	high-gloss
Suitable for number of bulbs:	1
Luminous flux:	520 lm
Cover material:	transparent plastic
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	DC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for Cable system:	no
Brushed surface:	no
LED nominal current at constant current:	350 mA
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light emission:	direct
Rated service life L70/B50 at 25 °C:	50000 h
Luminaire luminous efficacy:	76.47 lm/W

Characteristics

HAB12219 LED EBL 10W 350mA be/bk

Manufacturer

HAN12219733

GTIN4251433925606

Covering the luminaire with thermal insulation material possibleNo

Beam angleMedium beam 21-40°

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-1520lm

Operating deviceLED control gear current controlled

Width97 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth45 mm

Color temperature3000K

Color rendering index CRI90-100

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power6.8W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorBlack

Height/Depth55 mm

LED nominal current at constant current350mA

Luminaire luminous efficacy76.47lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux520lm

Light distributionSymmetrical

Length97 mm

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Brushed surfaceNo

Without dimming functionNo

ReflectorHigh gloss

IP protection)IP20

Protection classIII

Voltage typeDC

AdjustabilityNot adjustable

Cover materialPlastic transparent

Housing materialOther
