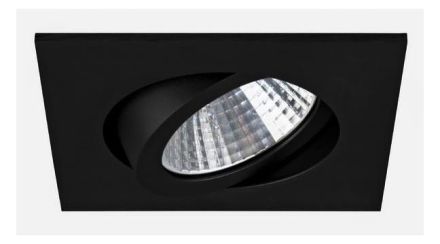

Brumberg 12262083 350mA 7W 2700K black LED recessed ceiling spotlight

Brumberg 12262083 350mA 7W 2700K black LED recessed ceiling spotlight

In stock

SKU: 872713

Price on request

€44.19

€0

Overview

LED recessed spotlight, black, square. Designed in a compact design for quick, tool-free installation for ceiling installation. Version: Plug&Play, Installation type: recessed installation, Installation location: ceiling installation, Material: aluminum / polycarbonate, Protection class on the room side: according to DIN EN 60529: IP20, Protection class: (EN 61140) III, Power: 7W, Number of lamps / sockets: 1.0 pcs, Luminous flux: 740 lm, Beam angle: 38°, Adjustability: pivoting, With control gear: No, Dimmable: Depends on control gear, Type of dimming: Depends on control gear.

Property	Value
Rated luminous flux according to IEC 62722-2-1:	740 lm
Housing color:	black
Housing material:	aluminum
Protection class (IP):	IP20
Socket:	other
Light source:	LED not replaceable
Protection class:	III
With light source:	yes
Installation height/depth:	38 mm
With control gear:	no
Suitable for recessed mounting:	yes
Length:	82 mm
Width:	82 mm
Height/depth:	3 mm
With motion detector:	no
Color temperature:	2700 K
Suitable for lamp power:	7 W
Beam angle:	medium beam 21-40°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Reflector:	high-gloss
Suitable for number of bulbs:	1
Luminous flux:	740 lm
Cover material:	transparent plastic
Covering of the lamp with thermal insulation material possible:	no
Type of voltage:	DC
Light color:	white
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
LED nominal current at Constant current:	350 mA
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with Push button:	no
Without dimming function:	no
Light emission:	direct
Rated service life L70/B50 at 25 °C:	50000 h
Luminaire luminous efficacy:	105.71 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no

Characteristics

HAB350mA 7W 2700K black

Manufacturer

HAN12262083

GTIN4251433946229

Covering the luminaire with thermal insulation material possibleNo

Beam angleMedium beam 21-40°

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-1740lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width82 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth38 mm

Color temperature2700K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power7W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for truss mountingNo

Housing colorBlack

Height/Depth3 mm

LED nominal current at constant current350mA

Luminaire luminous efficacy105.71lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux740lm

Light distributionSymmetrical

Length82 mm

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Brushed surfaceNo

Without dimming functionNo

ReflectorHigh gloss

IP protection)IP20

Protection classIII

Voltage typeDC

AdjustabilitySwiveling

Cover materialPlastic transparent

Housing materialAluminum
