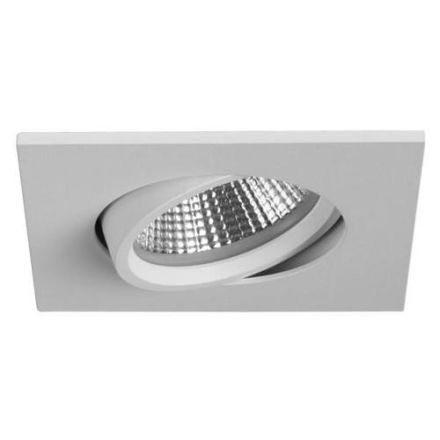

Brumberg 12295173 LED recessed ceiling spotlight 350mA 5.5W 3000K white str

Brumberg 12295173 LED recessed ceiling spotlight 350mA 5.5W 3000K white str

In stock

SKU: 430755

Price on request

€46.44

€0

Overview

LED recessed spotlight, structured white, square. Designed in a compact shape for tool-free, quick installation for ceiling installation. Recessed spotlight suitable for direct installation on normally flammable building materials. Thermal insulation permitted. Design: Plug&Play, Installation type: Recessed installation, Installation location: Ceiling installation, Material: Aluminum / Steel / Plastic, Protection class on the room side: according to DIN EN 60529: IP20, Protection class: (EN 61140) III, Power: 6W, Number of lamps / sockets: 1.0 pcs, Luminous flux: 540 lm, Beam angle: 36°, Adjustability: pivoting, With control gear: No, Dimmable: Depends on control gear, Type of dimming: Depends on control gear.

Property	Value
Rated luminous flux according to IEC 62722-2-1:	540 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Socket:	other
Light source:	LED not replaceable
Protection class:	III
With light source:	yes
Installation height/depth:	45 mm
With control gear:	no
Suitable for recessed mounting:	yes
Length:	80 mm
Width:	80 mm
Height/depth:	3 mm
With motion detector:	no
Color temperature:	3000 K
Suitable for lamp power:	6 W
Beam angle:	medium beam 21-40°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Reflector:	high-gloss
Suitable for number of bulbs:	1
Luminous flux:	540 lm
Cover material:	transparent plastic
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	DC
Light color:	white
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
LED nominal current at Constant current:	350 mA
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with Push button:	no
Without dimming function:	no
Light emission:	direct
Luminous efficacy:	90 lm/W

Characteristics

Manufacturer

HAN12295173

GTIN4251433914549

Covering the luminaire with thermal insulation material possibleNo

Beam angleMedium beam 21-40°

Rated luminous flux according to IEC 62722-2-1540lm

Operating deviceLED control gear current controlled

Width80 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth45 mm

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power6W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for truss mountingNo

Housing colorWhite

Height/Depth3 mm

LED nominal current at constant current350mA

Luminaire luminous efficacy90lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux540lm

Light distributionSymmetrical

Length80 mm

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Brushed surfaceNo

Without dimming functionNo

ReflectorHigh gloss

IP protection)IP20

Protection classIII

Voltage typeDC

AdjustabilitySwiveling

Cover materialPlastic transparent

Housing materialAluminum
