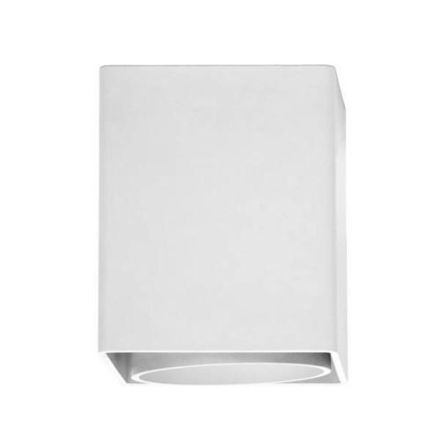

Brumberg 12392173 12392 230V AC 8.9W 3000K str.-ws LED recessed ceiling spotlight

Brumberg 12392173 12392 230V AC 8.9W 3000K str.-ws LED recessed ceiling spotlight

In stock

SKU: 814226

Price on request

€127.12

€0

Overview

LED surface-mounted downlight IMPLEMENT, dimmable, structured white, square. Compact design for harmonious implementation in harmonious, architectural room concepts. Luminaire including converter for 230 V mains voltage, trailing edge. Socket: without, mounting type: surface-mounted, mounting location: ceiling mounting, material: aluminum / plastic, protection type: according to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 8.9W, number of lamps / sockets: 1.0 pcs, luminous flux: 730lm, color temperature: 3000K, light color: white, beam angle: 37°, adjustability: not adjustable, with control gear, type of dimming: trailing edge.

Property	Value
Max. System power:	8.9 W
Rated luminous flux according to IEC 62722-2-1:	730 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With control gear:	yes
Suitable for recessed mounting:	no
Length:	94 mm
Width:	94 mm
Height/Depth:	115 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	230 V
Suitable for lamp power:	8.9 W
Beam angle:	medium beam 21-40°
Color rendering index CRI:	90-100
Suitable for Ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Reflector:	high-gloss
Suitable for number of lamps:	1
Luminous flux:	730 lm
Cover material:	transparent plastic
Voltage type:	AC
Light color:	white
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Brushed surface:	no
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming Trailing edge phase control:	yes
Dimming leading edge phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light emission:	direct
Luminaire luminous efficacy:	82.02 lm/W

Characteristics

HAB12392 230V AC 8.9W 3000K str.-ws

Manufacturer

HAN12392173

GTIN4251433925750

Beam angleMedium beam 21-40°

Rated luminous flux according to IEC 62722-2-1730lm

Operating deviceLED control gear current controlled

Width94 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeYes

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI90-100

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power8.9W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for truss mountingNo

Housing colorWhite

Height/Depth115 mm

Luminaire luminous efficacy82.02lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux730lm

Light distributionSymmetrical

Length94 mm

Max. system performance8.9W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

Brushed surfaceNo

Without dimming functionNo

ReflectorHigh gloss

IP protection)IP20

Protection classI

Voltage typeAC

AdjustabilityNot adjustable

Cover materialPlastic transparent

Housing materialAluminum
