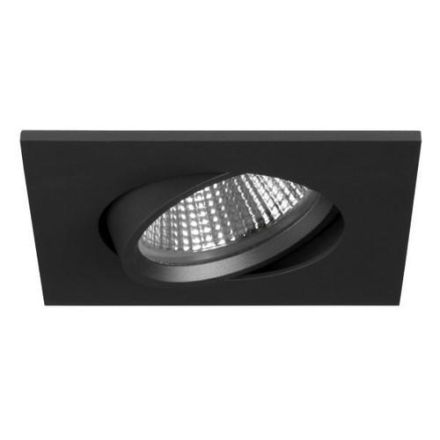

Brumberg 12465643 LED recessed ceiling spotlight 350mA 5.5W dimmable titanium

In stock
SKU: 430809
€63.87
Into a basketIn the basketGo

Overview

LED recessed spotlight, dim2warm, matt titanium, square. Designed in a compact shape for tool-free, quick installation for ceiling installation. If the light is dimmed, the color temperature decreases. Recessed spotlight suitable for direct installation on normally flammable building materials. Thermal insulation permitted. Design: Plug&Play, Installation type: Recessed installation, Installation location: Ceiling installation, Material: Aluminum / Steel / Plastic, Protection class on the room side: according to DIN EN 60529: IP20, Protection class: (EN 61140) III, Power: 6W, Number of lamps / sockets: 1.0 pcs, Luminous flux: 420 lm, Beam angle: 36°, Adjustability: pivoting, With control gear: No, Dimmable: Depends on control gear, Type of dimming: Depends on control gear.

PropertyValue
Rated luminous flux according to IEC 62722-2-1:420 lm
Housing color:Titanium
Housing material:Aluminum
Protection class (IP):IP20
Socket:other
Light source:LED not replaceable
Protection class:III
With light source:yes
Installation height/depth:45 mm
With control gear:no
Suitable for built-in installation:yes
Length:80 mm
Width:80 mm
Height/depth:3 mm
With motion detector:no
Color temperature:1800 to 3000 K
Suitable for lamp power:6 W
Beam angle:medium beam 21-40°
Color rendering index CRI:90-100
Suitable for ceiling mounting:yes
Light distribution:symmetrical
Operating device:LED operating device, current-controlled
Reflector:high-gloss
Suitable for number of bulbs:1
Luminous flux:420 lm
Cover material:transparent plastic
Covering of the lamp with thermal insulation material possible:no
Voltage type:DC
Light color:white
Adjustability:pivotable
Suitable for clamp mounting:no
Suitable for pendulum suspension:no
Suitable for pedestal/floor mounting:no
Suitable for truss mounting:no
With light sensor:no
Suitable for surface mounting:no
Suitable for cable system:no
Surface brushed:no
LED nominal current at constant current:350 mA
Dimming depending on operating device:no
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:no
Dimming DMX:no
Dimming DSI:no
Dimming potentiometer (integrated in device):no
Dimming GPRS:no
LineSwitch dimming:no
Manufacturer-specific dimming:no
Mains voltage modulation dimming:no
Trailing edge dimming:no
Phase control dimming:no
Phase control dimming:no
Programmable dimming:no
RF dimming:no
Sine Wave Reduction dimming:no
Touch and Dim dimming:no
Dimming Zigbee:no
Dimming with push button:no
Without dimming function:no
Light emission:direct
Luminous efficacy:70 lm/W

Characteristics

ManufacturerBrumberg
HAN12465643
GTIN4251433911289
Covering the luminaire with thermal insulation material possibleNo
Beam angleMedium beam 21-40°
Rated luminous flux according to IEC 62722-2-1420lm
Operating deviceLED control gear current controlled
Width80 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Installation height/depth45 mm
Color temperature1800 to 3000 K
Color rendering index CRI90-100
VersionOther
Suitable for surface mountingNo
Suitable for ceiling mountingYes
Suitable for flush mountingYes
Suitable for clamp mountingNo
Suitable for lamp power6W
Suitable for number of lamps1
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for truss mountingNo
Housing colorTitanium
Height/Depth3 mm
LED nominal current at constant current350mA
Luminaire luminous efficacy70lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Luminous flux420lm
Light distributionSymmetrical
Length80 mm
With operating deviceNo
With motion detectorNo
With light sourceYes
With light sensorNo
Brushed surfaceNo
Without dimming functionNo
ReflectorHigh gloss
IP protection)IP20
Protection classIII
Voltage typeDC
AdjustabilitySwiveling
Cover materialPlastic transparent
Housing materialAluminum
