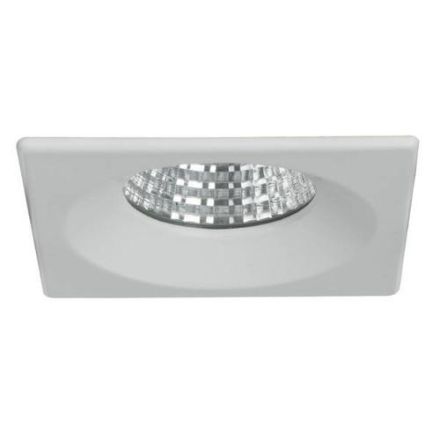

Brumberg 12530074 LED recessed ceiling spotlight 700mA 7W 4000K white

Brumberg 12530074 LED recessed ceiling spotlight 700mA 7W 4000K white

In stock

SKU: 430837

Price on request

€38.54

€0

Overview

LED recessed downlight 700mA, 7W, 4000K, white LED ceiling recessed downlight with clear glass, round, beam angle 30°, equipped with 1 x high-performance LED for use in the area of general or accent lighting, installation in hollow ceilings with spring fastening, with BRUMBERG plug connection 700 mA (plug & play, series connection), LED light source emitting downwards, with aluminum facet reflector. Not suitable for covering with thermal insulation material. Not suitable for installation in device / mounting boxes. This luminaire contains built-in LED lamps. The lamps cannot be replaced in the luminaire. Energy efficiency class A++ to A.

Property	Value
Rated luminous flux according to IEC 62722-2-1:	660 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Socket:	other
Light source:	LED not replaceable
Protection class:	III
With light source:	yes
Installation height/depth:	62 mm
With control gear:	no
Suitable for recessed mounting:	yes
Length:	92 mm
Width:	92 mm
Height/depth:	3 mm
With motion detector:	no
Color temperature:	4000 K
Suitable for lamp power:	7 W
Beam angle:	medium beam 21-40°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Reflector:	high-gloss
Suitable for number of lamps:	1
Luminous flux:	660 lm
Cover material:	transparent glass
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	DC
Light color:	white
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
LED nominal current at Constant current:	700 mA
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with Push button:	no
Without dimming function:	no
Light emission:	direct
Rated service life L70/B50 at 25 °C:	50000 h
Luminaire luminous efficacy:	94.29 lm/W

Characteristics

Manufacturer

HAN12530074

GTIN4251433917878

Covering the luminaire with thermal insulation material possibleNo

Beam angleMedium beam 21-40°

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-1660lm

Operating deviceLED control gear current controlled

Width92 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth62 mm

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power7W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for truss mountingNo

Housing colorWhite

Height/Depth3 mm

LED nominal current at constant current700mA

Luminaire luminous efficacy94.29lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux660lm

Light distributionSymmetrical

Length92 mm

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Brushed surfaceNo

Without dimming functionNo

ReflectorHigh gloss

IP protection)IP20

Protection classIII

Voltage typeDC

AdjustabilityNot adjustable

Cover materialGlass transparent

Housing materialAluminum
