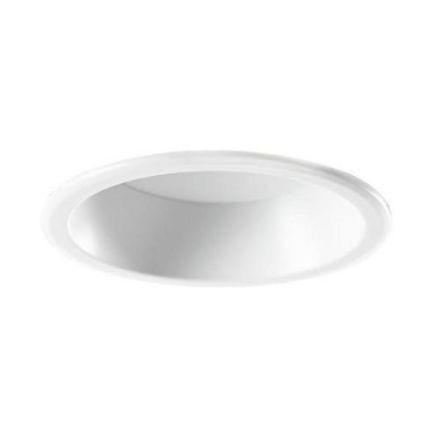

Brumberg 12540074 230V AC 12W 4000K white LED recessed ceiling spotlight

Brumberg 12540074 230V AC 12W 4000K white LED recessed ceiling spotlight

In stock

SKU: 814638

Price on request

€65.32

€0

Overview

LED recessed downlight, IP44, switchable, white, round. Designed in a compact design for tool-free, quick installation for ceiling installation. Installation type: recessed installation, installation location: ceiling installation, material: aluminum / polycarbonate / steel, protection class on the room side: according to DIN EN 60529: IP44*, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 12W, number of lamps / sockets: 1.0 pcs, luminous flux: 1,200 lm, color temperature: 4,000 K, beam angle: 100°, adjustability: not adjustable, with operating device: yes, dimmable: no, type of dimming: switchable.

Property	Value
Max. System power:	12 W
Rated luminous flux according to IEC 62722-2-1:	1200 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP44
Outer diameter:	167 mm
Protection class:	I
With light source:	yes
Installation height/depth:	100 mm
With control gear:	yes
Suitable for recessed mounting:	yes
Height/depth:	5 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	230 V
Suitable for lamp power:	12 W
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Suitable for number of bulbs:	1
Luminous flux:	1200 lm
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendant suspension:	no
Suitable for Pedestal/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light emission:	direct
Rated service life L70/B50 at 25 °C:	50000 h
Type of Wiring:	suitable for through wiring
Luminaire luminous efficacy:	100 lm/W

Characteristics

HAB230V AC 12W 4000K white

Manufacturer

HAN12540074

GTIN4251433937593

Covering the luminaire with thermal insulation material possibleNo

Type of wiringSuitable for through wiring

Outer diameter167 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11200lm

Operating deviceLED control gear current controlled

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth100 mm

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power12W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Height/Depth5 mm

Luminaire luminous efficacy100lm/W

Light emissionDirect

Light colorWhite

Luminous flux1200lm

Light distributionSymmetrical

Max. system performance12W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

Brushed surfaceNo

Without dimming functionYes

IP protection)IP44

Protection classI

Voltage typeAC

AdjustabilityNot adjustable

Housing materialAluminum
