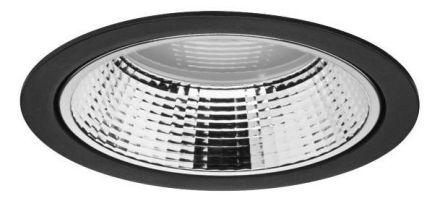

LED recessed downlight, switchable, structural black, round. Designed in a compact design for quick, tool-free installation for ceiling installation. Installation type: recessed installation, installation location: ceiling installation, material: aluminum / polycarbonate / steel, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 32.5W, number of lamps / sockets: 1.0 pcs, luminous flux: 2,600 lm, color temperature: 3,000 K, beam angle: 70°, adjustability: not adjustable, with control gear: yes, dimmable: no, type of dimming: switchable.
| Property | Value |
| Max. System power: | 32.5 W |
| Rated luminous flux according to IEC 62722-2-1: | 2600 lm |
| Housing color: | black |
| Housing material: | aluminum |
| Protection class (IP): | IP20 |
| Outer diameter: | 230 mm |
| Light source: | LED not replaceable |
| Protection class: | II |
| With light source: | yes |
| Installation height/depth: | 95 mm |
| With control gear: | yes |
| Suitable for recessed mounting: | yes |
| Height/depth: | 3 mm |
| With motion detector: | no |
| Color temperature: | 3000 K |
| Nominal voltage: | 220 to 240 V |
| Suitable for lamp power: | 32.5 W |
| Color rendering index CRI: | 90-100 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Reflector: | high-gloss |
| Suitable for number of lamps: | 1 |
| Luminous flux: | 2600 lm |
| Covering of the lamp with thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | white |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for Pendulum suspension: | no |
| Suitable for platform/floor mounting: | no |
| Suitable for traverse mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for cable system: | no |
| Brushed surface: | no |
| Dimming depending on operating device: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Phase control dimming: | no |
| Programmable dimming: | no |
| RF dimming: | no |
| Sine Wave Reduction dimming: | no |
| Touch and Dim dimming: | no |
| Zigbee dimming: | no |
| Push button dimming: | no |
| Without dimming function: | yes |
| Light emission: | direct |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Luminaire luminous efficacy: | 80 lm/W |
