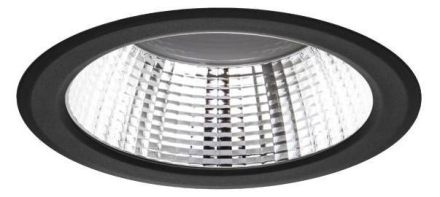

Brumberg 12572184 230V AC 19W 4000K str.-sw. LED recessed ceiling spotlight

Brumberg 12572184 230V AC 19W 4000K str.-sw. LED recessed ceiling spotlight

In stock

SKU: 872108

Price on request

€147.05

€0

Overview

LED recessed downlight, DALI dimmable, structural black, round. Designed in a compact design for tool-free, quick installation for ceiling installation. Installation type: recessed installation, installation location: ceiling installation, material: aluminum / polycarbonate / steel, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 19W, number of lamps / sockets: 1.0 pcs, luminous flux: 1,310 lm, beam angle: 68°, adjustability: not adjustable, with control gear: yes, dimmable: yes, type of dimming: DALI.

Property	Value
Max. System power:	19 W
Rated luminous flux according to IEC 62722-2-1:	1310 lm
Housing color:	black
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	180 mm
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	90 mm
With control gear:	yes
Suitable for recessed mounting:	yes
Height/depth:	3.5 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	19 W
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Reflector:	high-gloss
Suitable for number of lamps:	1
Luminous flux:	1310 lm
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for Pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light emission:	direct
Rated service life L70/B50 at 25 °C:	50000 h
Luminaire luminous efficacy:	68.95 lm/W

Characteristics

HAB12572184 230V AC 19W 4000K str.-sw.

Manufacturer

HAN12572184

GTIN4251433943525

Covering the luminaire with thermal insulation material possibleNo

Outer diameter180 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11310lm

Operating deviceLED control gear current controlled

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth90 mm

Color temperature4000K

Color rendering index CRI90-100

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power19 W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for truss mountingNo

Housing colorBlack

Height/Depth3.5 mm

Luminaire luminous efficacy68.95lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1310lm

Light distributionSymmetrical

Max. system performance19 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Brushed surfaceNo

Without dimming functionNo

ReflectorHigh gloss

IP protection)IP20

Protection classII

Voltage typeAC

AdjustabilityNot adjustable

Housing materialAluminum
