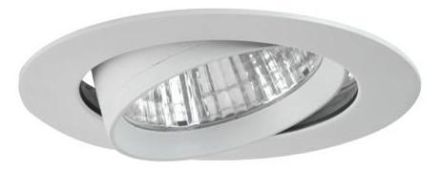

Brumberg 12592173 230V AC 32W 3000Kstr.-ws. LED recessed ceiling spotlight

Brumberg 12592173 230V AC 32W 3000Kstr.-ws. LED recessed ceiling spotlight

In stock

SKU: 872252

Price on request

€194.73

€0

Overview

LED recessed directional spotlight, structured white, round. Designed in a compact design for quick, tool-free installation for ceiling installation. Installation type: recessed installation, installation location: ceiling installation, material: aluminum / glass / plastic, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 32W, number of lamps / sockets: 1.0 pcs, luminous flux: 3,800 lm, color temperature: 3,000 K, light color: white, beam angle: 30°, adjustability: rotatable and pivotable, with control gear: yes, type of dimming: DALI.

Property	Value
Max. System power:	32 W
Rated luminous flux according to IEC 62722-2-1:	3800 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	182 mm
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	125 mm
With control gear:	yes
Suitable for recessed mounting:	yes
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	32 W
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Control gear:	LED control gear, current-controlled
Reflector:	high gloss
Suitable for number of bulbs:	1
Luminous flux:	3800 lm
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for Pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine wave reduction dimming:	no
Touch and dim dimming:	no
Zigbee dimming:	no
Push button dimming:	no
Without dimming function:	no
Light emission:	direct
Luminaire luminous efficacy:	118.75 lm/W

Characteristics

HAB12592173 230V AC 32W 3000Kstr.-ws.

Manufacturer

HAN12592173

GTIN4251433938545

Covering the luminaire with thermal insulation material possibleNo

Outer diameter182 mm

Rated luminous flux according to IEC 62722-2-13800lm

Operating deviceLED control gear current controlled

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth125 mm

Color temperature3000K

Color rendering index CRI90-100

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power32W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Luminaire luminous efficacy118.75lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux3800lm

Light distributionSymmetrical

Max. system performance32W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Brushed surfaceNo

Without dimming functionNo

ReflectorHigh gloss

IP protection)IP20

Protection classII

Voltage typeAC

AdjustabilityRotatable and pivotable

Housing materialAluminum
