Brumberg 12603173 LED recessed ceiling spotlight 350mA, 12.2W 3000K white

Brumberg 12603173 LED recessed ceiling spotlight 350mA, 12.2W 3000K white

In stock

SKU: 430848

Price on request

€100.52

€0

Overview

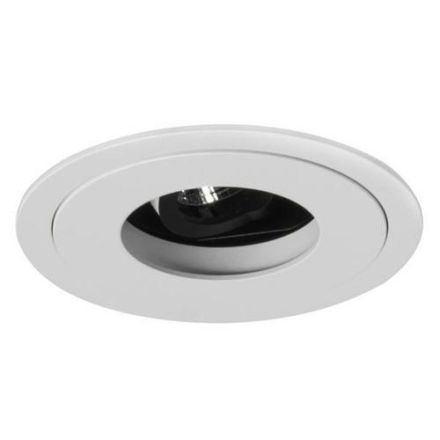

Round LED recessed light, 350mA, 12.2W, 3000K, white, round LED recessed spotlight, rotatable 355°, pivotable 30°, equipped with 1 x high-performance LED for use in the area of general or accent lighting, installation in hollow ceilings with spring fastening, with BRUMBERG plug connection 350 mA (plug & play, series connection), LED light source emitting downwards, with aluminum facet reflector, beam angle 29°, light not suitable for covering with thermal insulation material. This light contains built-in LED lamps. The lamps cannot be replaced in the light. Energy efficiency class A++ to A.

Property	Value
Rated luminous flux according to IEC 62722-2-1:	1300 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	92 mm
Light source:	LED not replaceable
Protection class:	III
With light source:	yes
Installation height/depth:	95 mm
Suitable for recessed mounting:	yes
Height/depth:	2 mm
With motion detector:	no
Color temperature:	3000 K
Suitable for lamp power:	12.2 W
Beam angle:	medium beam 21-40°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Reflector:	high-gloss
Suitable for number of lamps:	1
Luminous flux:	1300 lm
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	DC
Light color:	white
Suitable for track mounting:	no
Adjustability:	rotatable and pivotable
Suitable for Clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
LED nominal current at constant current:	350 mA
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light emission:	direct
Luminaire luminous efficacy:	106.56 lm/W

Characteristics

Manufacturer

HAN12603173

GTIN4251433920199

Covering the luminaire with thermal insulation material possibleNo

Beam angleMedium beam 21-40°

Outer diameter92 mm

Rated luminous flux according to IEC 62722-2-11300lm

Operating deviceLED control gear current controlled

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth95 mm

Color temperature3000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power12.2W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Height/Depth2 mm

LED nominal current at constant current350mA

Luminaire luminous efficacy106.56lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1300lm

Light distributionSymmetrical

With motion detectorNo

With light sourceYes

Brushed surfaceNo

Without dimming functionNo

ReflectorHigh gloss

IP protection)IP20

Protection classIII

Voltage typeDC

AdjustabilityRotatable and pivotable

Housing materialAluminum
