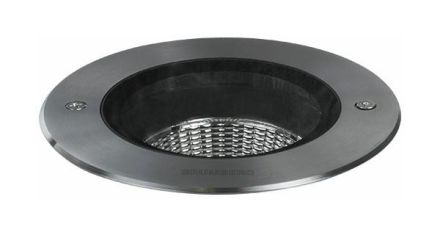

Brumberg 12660223 LED recessed ceiling spotlight 8W 3000K stainless steel

Brumberg 12660223 LED recessed ceiling spotlight 8W 3000K stainless steel

In stock

SKU: 430864

Price on request

€259.95

€0

Overview

LED recessed downlight HYBRIDE, V4A, IP67, stainless steel. Designed in a compact design for tool-free, quick installation for ceiling installation. Socket: without, installation type: recessed installation, installation location: ceiling installation, material: stainless steel / aluminum / glass, protection type: according to DIN EN 60529: IP67, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 8 W, luminous flux: 860.0 lm, light color: 3000 K, light color: white, beam angle: 38.0 °, adjustability: not adjustable, with operating device: yes, type of dimming: switchable, energy efficiency class: A++ to A,

Property	Value
Max. System power:	8 W
Rated luminous flux according to IEC 62722-2-1:	860 lm
Housing color:	Stainless steel
Housing material:	Stainless steel
Protection class (IP):	IP67
Outer diameter:	135 mm
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
Installation height/depth:	150 mm
With control gear:	yes
Suitable for recessed mounting:	yes
Height/depth:	3 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	230 V
Suitable for lamp power:	8 W
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK09
Reflector:	high-gloss
Suitable for number of lamps:	1
Luminous flux:	860 lm
Cover material:	transparent glass
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light emission:	direct
Luminaire luminous efficacy:	107.5 lm/W
Suitable for computer workstations according to EN 12464-1:	no

Characteristics

Manufacturer

HAN12660223

GTIN4251433915225

Outer diameter135 mm

Rated luminous flux according to IEC 62722-2-1860lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth150 mm

Color temperature3000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power8W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorStainless steel

Height/Depth3 mm

Luminaire luminous efficacy107.5lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux860lm

Light distributionSymmetrical

Max. system performance8W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

Brushed surfaceNo

Without dimming functionYes

ReflectorHigh gloss

Impact resistanceIK09

IP protection)IP67

Protection classI

Voltage typeAC

AdjustabilityNot adjustable

Cover materialGlass transparent

Housing materialStainless steel
