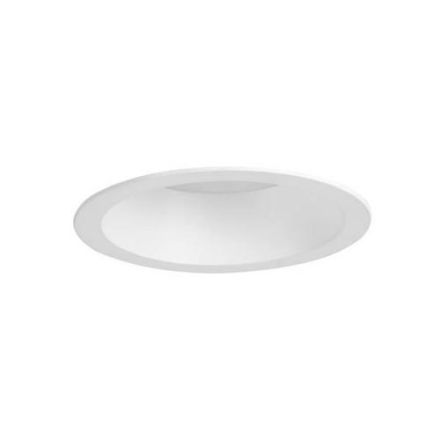

Brumberg 32029073 1880lm 3000/4000/5700K ws D:240mm DA:200 LED recessed ceiling spotlight LB20

Brumberg 32029073 1880lm 3000/4000/5700K ws D:240mm DA:200 LED recessed ceiling spotlight LB20

In stock

SKU: 814471

Price on request

€61.16

€0

Overview

LED recessed downlight, IP54, switchable, white, round. Designed in a compact design for tool-free quick installation for ceiling installation. The light color can be adjusted on site from 3000 K to 4000 K or 5700 K. Installation type: recessed installation, installation location: ceiling installation, material: plastic, protection class on the room side: according to DIN EN 60529: IP54, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 20W, number of lamps / sockets: 1.0 pcs, luminous flux: 1,880 lm, color temperature: from 3,000 K to 5,700 K, beam angle: 90°, adjustability: not adjustable, with control gear: yes.

Property	Value
Max. System power:	20 W
Rated luminous flux according to IEC 62722-2-1:	1880 lm
Housing color:	white
Housing material:	plastic
Protection class (IP):	IP40
Outer diameter:	240 mm
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation diameter:	200 mm
Installation height/depth:	133 mm
With control gear:	yes
Suitable for recessed mounting:	yes
With motion detector:	no
Color temperature:	3000 to 5700 K
Nominal voltage:	230 V
Suitable for lamp power:	20 W
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK03
Reflector:	without
Suitable for number of lamps:	1
Luminous flux:	1880 lm
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming Trailing edge phase control:	no
Dimming leading edge phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light emission:	direct
Luminaire luminous efficacy:	94 lm/W

Characteristics

HAB1880lm 3000/4000/5700K ws D:240mm DA:200

Manufacturer

HAN32029073

GTIN4251433926030

Covering the luminaire with thermal insulation material possibleNo

Outer diameter240 mm

Rated luminous flux according to IEC 62722-2-11880lm

Operating deviceLED control gear current controlled

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter200 mm

Installation height/depth133 mm

Color temperature3000 to 5700 K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power20W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Luminaire luminous efficacy94lm/W

LampsLED not replaceable

Light emissionDirect

Luminous flux1880lm

Light distributionSymmetrical

Max. system performance20W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

Brushed surfaceNo

Without dimming functionYes

ReflectorWithout

Impact resistanceIK03

IP protection)IP40

Protection classII

Voltage typeAC

AdjustabilityNot adjustable

Housing materialPlastic
