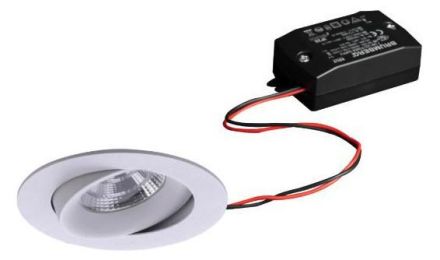

Brumberg 38277173 5W 3000K structured LED recessed ceiling spotlight

Brumberg 38277173 5W 3000K structured LED recessed ceiling spotlight

In stock

SKU: 872953

Price on request

€72.31

€0

Overview

LED recessed spotlight set, switchable, round. Designed in a compact design for quick, tool-free installation for ceiling installation. Set including converter for 230V mains voltage, switchable, converter dimensions: L 68 x W 35 x H 21mm. Design: Plug&Play, installation type: recessed installation, installation location: ceiling installation, protection type: according to DIN EN 60529: IP44*, protection class: (EN 61140) III, voltage: 230V AC 50Hz, power: 5.5W, luminous flux: 500lm, color temperature: 3000 K, light color: white, beam angle: 36°, adjustability: rotatable and pivotable, without control gear.

Property	Value
Max. System power:	6 W
Rated luminous flux according to IEC 62722-2-1:	500 lm
Housing color:	white
Protection class (IP):	IP44
Outer diameter:	95 mm
Socket:	other
Light source:	LED not replaceable
Protection class:	III
With light source:	yes
Installation height/depth:	48 mm
With Operating device:	no
Suitable for recessed mounting:	yes
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	230 V
Suitable for lamp power:	6 W
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Luminous flux:	500 lm
Cover material:	transparent plastic
Light color:	white
Suitable for track mounting:	no
Adjustability:	pivoting
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With Light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light emission:	direct
Suitable for computer workstations according to EN 12464-1:	yes

Characteristics

HAB5W 3000K structured

Manufacturer

HAN38277173

GTIN4251433919681

Outer diameter95 mm

Rated luminous flux according to IEC 62722-2-1500lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth48 mm

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power6W

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux500lm

Light distributionSymmetrical

Max. system performance6W

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

Brushed surfaceNo

Without dimming functionYes

IP protection)IP44

Protection classIII

AdjustabilitySwiveling

Cover materialPlastic transparent
